Household single phase AC motors 8W - 40W output power 94mm small ac motors

Basic Info

Model No.: Household single phase AC motors 8W - 40W output power 94mm small ac motors

Product Description

Certification:	TS16949/UL
Model Number:	94AC-01

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	USD 21.00-25.00 per unit
Packaging Details:	Carton or negotiation
Delivery Time:	45 working days after received your payment
Payment Terms:	negotiation, T/T
Supply Ability:	50000pcs/month

General Introduction:

The frame size of this series is at 94mm with single or double shaft extension. Both front and rear endcaps with paint finish to endure the extreme working conditions. Ventilation holes are available in the housing to cool down the temperature rise. This series is mainly designed for light weight applications.

Features:

1. Similar to 80AC-01 series, 94AC-01series single phase AC motor is mainly designed for light duty applications.

2. This range of motors is uniformly constructed with the stator laminations at 94cm in outer diameter.

3. The black-coated end shields shall be regarded as one of the genius selling attractions.

4. The round groove along the front ball bearing room makes the motor to be more tightly installed into the application to decrease the vibration.

5. The output power ranges from 8W to 40W.

Applications:
This range of single phase ac motors are widely applied to kitchen ventilators and household dish-washers or some other household appliances.

Specifications:

Model	Voltage (VDC)	Frequency (Hz)	Output Power (W)	Rated Speed (rpm)	Input Power (W)	Noise dB(A)	Capacitor (μF)
YDK94-6-6A	220	50/60Hz	8	730/620/500	25	34	0.85/450
YDK94-10-6A	220	50/60Hz	10	750/650/500	38	35	1/450
YDK94-12-4A	220	50/60Hz	12	830/700/550	45	36	1.2/450
YDK94-12-6A	220	50/60Hz	12	800/650/550	40	34	1.2/450
YSK94-16-4A	220	50/60Hz	16	880/700/580	48	37	1.2/450
YSK94-20-4A	220	50/60Hz	20	900/730/580	58	37	1.5/450
YSK94-25-4A	220	50/60Hz	25	950/800/650	82	40	2.5/450
YSK94-30-4A	220	50/60Hz	30	1000/950/800	88	40	2.5/450
YSK94-35-4A	220	50/60Hz	35	1050/950/800	98	40	2.5/450
YSK94-40-4A	220	50/60Hz	40	1050/950/800	108	42	3.0/450
YSK94-50-4A	220	50/60Hz	20	1150/1000/950	118	42	3.0/450

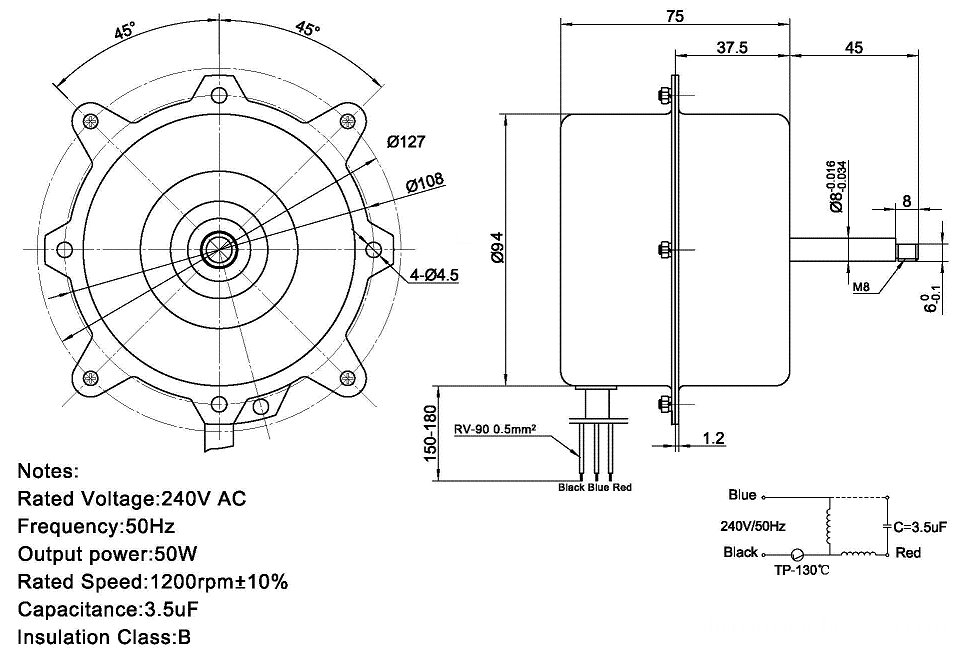

Outline drawings: (Unit=mm)

Household Single Phase AC Motors 8W 40W Output Power 94mm Small Ac Motors
