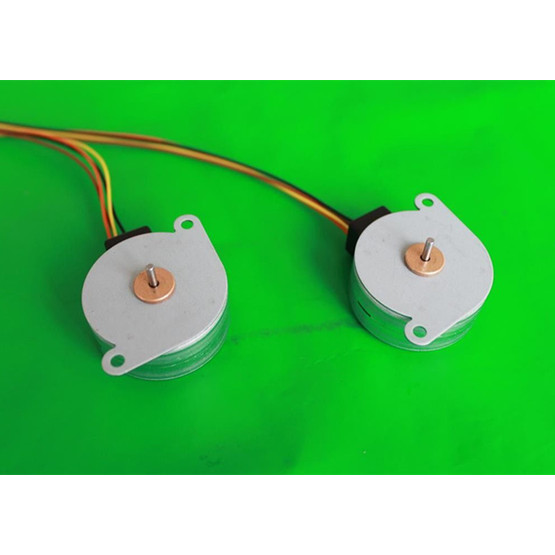

    35mm PM stepper motors with permanent magnets7.5 °or 15° step angle

    Contact Now

    Basic Info


    Model No.: 35mm PM stepper motors with permanent magnets7.5 °or 15° step angle


    Product Description



    Certification:

    TS-16949/RoHS/ISO14001

    Model Number:

    35BY48S

    Payment & Shipping Terms:

    Minimum Order Quantity:

    1000pcs

    Price:

    USD 8.50-9.50 per unit

    Packaging Details:

    Carton or negotiation

    Delivery Time:

    45 working days after received your payment

    Payment Terms:

    negotiation, T/T

    Supply Ability:

    150,000pcs/month





    Features:

    1. The holding torque, as much as up to 800g.cm, is defined as the amount of torque required to move the rotor one full step with the stator energized.
    2. The PM stepper motor can also maintain the holding torque indefinitely when the rotor is stopped while it is cheaper than the hybrid one in the same size in fine positioning.
    3. A low pricing, high efficiency and low noise.
    4. Custom features in mounting plate, bearings, shaft and wheel are also available upon request.

    Applications:

    They are widely used in labeling machines, vending machines and even gambling machines.



    Specifications:



    Model

    Step Angle

     ( °)

    No. of Phase

    Voltage

    (VDC)

    Current

     (A)

    Resistance

     (Ω)

    Inductance

    (mH)

    Holding Torque

    (g.cm)

    Pull-in Torque

    (g.cm)

    Detent Torque

    (g/cm)

    35BY48LZ-01

    7.5

    4

    12

    0.2

    60

    31.6

    520

    50(At 200Hz)

    125

    35BY24LZ-01

    15

    4

    24

    0.28

    85

    36.4

    450

    110(At 100Hz)

    125

    35BY48SZ-01

    7.5

    4

    5

    0.71

    7

    3

    450

    60(At 200Hz)

    75

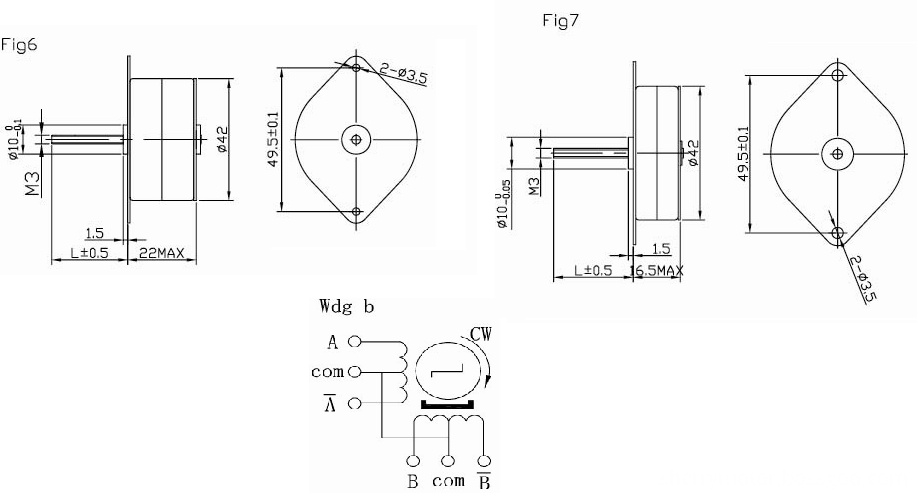

    Outline drawing:

    (Unit=mm)


    35mm PM stepper motors with permanent magnets7.5 °or 15° step angle


    Permanent Magnets 7.5 or 15 35mm Pm Stepping Motor 4 Phase Low Voltage
