Single or double shaft extension single phase electric motor 110mm low noise from China

Location: Home >Single Phase AC Motor > Single or double shaft extension single phase electric motor 110mm low noise

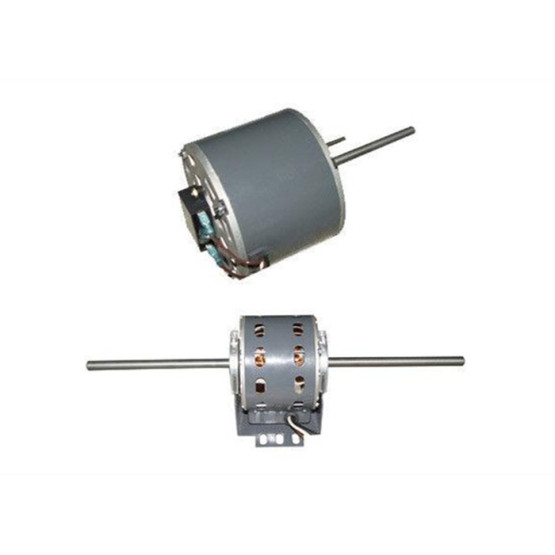

Single or double shaft extension single phase electric motor 110mm low noise

Basic Info

Model No.: Single or double shaft extension single phase electric motor 110mm low noise

Product Description

Certification:	TS16949/UL
Model Number:	110AC-01

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	USD 24.00-29.00 per unit
Packaging Details:	Carton or negotiation
Delivery Time:	45 working days after received your payment
Payment Terms:	negotiation, T/T
Supply Ability:	30000pcs/month

Features:

As the key part of central air conditioner, this series of single phase ac motors went through more hardships in design to finally become a new line of essential components to HVAC industry.
Now the ac motors have been optimized to run efficiently but with a low noise.
Being constructed with the stator laminations at 110cm in outer diameter, some of the motors are having the appropriate ventilation exits either in the housing or in the endshields, which will eliminate any extra motor temperature rise.
The options of either front endbell mounting configuration or horizontal foot-mounting configuration can be offered.

Applications:

The motors can be widely applied to central air conditioners and indoor/outdoor airflow for split air conditioners. The AC motors with single extended shaft can also be applied to the fitness equipment.

Specifications:

Model	Voltage (V)	Frequency (Hz)	Output Power (HP)	Rated Speed (rpm)	ROT	Cap. (μF)
YDK120-32-4-125	230	60	1/8	1550
YDK120-110-6A	220-240	50/60	1/7	900	CW-LE	5/400
YDK120-110-6A2	220-240	50	1/6	900	CCW-SE	5/370
YDK120-150-6A	220-240	50/60	1/5	925/3	CW-SE	7.5/370
YDK120-185-4A	220-240	50	1/4	1250	CCW-SE	5/440
YDK120-185-4A2	220-240	50	1/4	1050/3	CW-SE	10/440
YDK120-185-6A	220-240	60	1/4	950	CW-SE	5/400
YDK120-185-6A2	220-240	50	1/4	950	CW-SE	5/400
YDK120-74-4A	220-240	50	1/10	1390/3	CCW-LE	4/370
YDK120-74-4A3	220-240	50/60	1/10	1600/3	CW-LE	4/370
YDK120-75-6A	220-240	50	1/10	850	CCW-SE	4/370
YDK120-90-4A	208-230	60	1/8	1550	CW-SE	4/370
YDK120-90-6A2	220-240	50	1/8	850	CW-LE	5/400
YDK120-90-6A3	220-240	60	1/8	1100	CCW-LE	5/370
YSK120-120-4A	220-240	60	1/6	1300/4	CW-LE	3/370
YSK120-120-4A3	220-240	50/60	1/6	1300/4	CW-LE	4/370
YSK120-120-4A5	220-240	50/60	1/6	1300/4	CW-LE	5/370
YSK120-120-4A6	220-240	50/60	1/6	1500/3	CW-LE	5/370
YSK120-120-6A	220-240	50/60	1/4	1100/3	CCW-LE	10/370
YSK120-150-4A	220-240	50	1/5	1320/3	CW-LE	4/450
YSK120-185-4A	220-240	60	1/4	1625/3	CCW-LE	7.5/370
YSK120-37-4A	220-240	50	1/20	1350/3	CCW-LE	3/370
YSK120-40-4A3	220-240	50	1/20	1100/3	CW-LE	3/370
YSK120-50-4A2	220-240	50	1/15	1300/3	CW-LE	3/400
YSK120-64-4A	220-240	50	1/12	1320/3	CCW-LE	3/400
YSK120-90-4A	220-240	60	1/8	1600/3	CW-LE	4/370
YSK120-90-4A4	220-240	50	1/8	1300/3	CW-LE	5/370
YSK120-90-4A5	220-240	50	1/8	1175/3	CCW-LE	4/370
YSK120-90-4A6	220-240	60	1/8	1400	CCW-LE	8/450
YSK120-200-4A	115	60	1/4	1600/2	CW-LE	12/370

Single Phase Electric Motor 110mm Low Noise Motor Single or Double Shaft Extension
