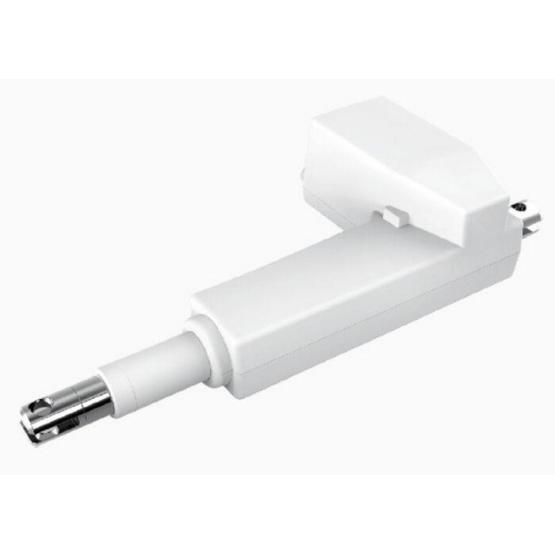

HS series ac linear actuator

Basic Info

Model No.: HS

Product Description

HS series ac linear actuator/ electric linear actuator push pull 12v linear actuator for solar tracker

20180926150012

Features:

1) Applications: Medical Equipment
2) Silence and limit swtich built-in

3) Up to 6000N load capacity

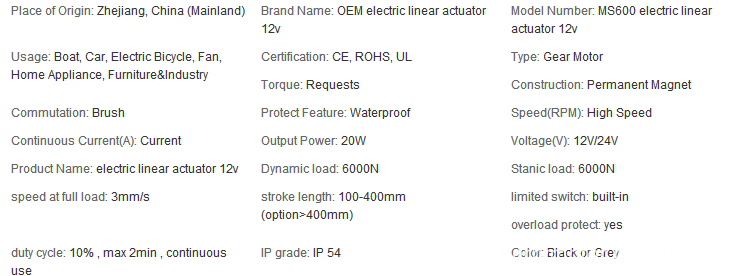

Model
Dynamic Load Push (N)	6000
Dynamic Load Pull (N)	4000
Static Load Push (N)	6000
Static Load Pull (N)	4000
Input (VDC)	24
Speed at Full Load (mm/s)	3/ 4/ 8/ 12
Stroke Length (mm)	100~400 (option>400)
Mounting Position	H type, V type
Color	Black or grey
Limit Switch	Build-in
Overload Protection	Yes
Duty Cycle	10%, max 2 min, continuous operation
IP Grade	IP54
Operating Temperature	+5℃~+40℃
Optional Features	Reed switch option Only push option Safety nut option
Standard	CE/ EN60601/ UL60601

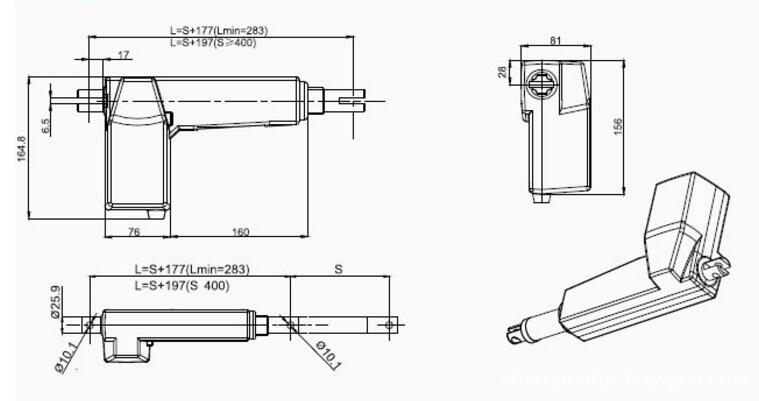

dimension

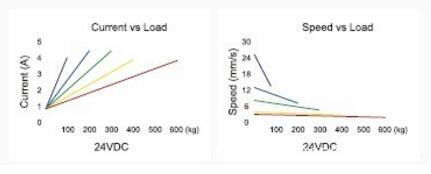

performance

HS Series Ac Linear Actuator Silence and Limit Swtich Built in Application in Medical Equipment
