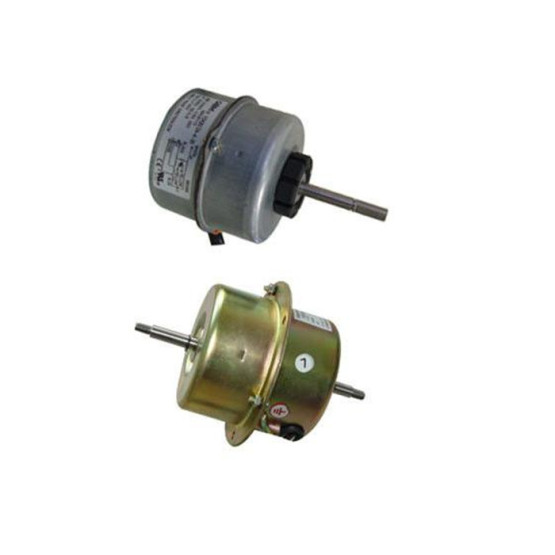

Model No.: 80AC-01 single phase ac motor/ high efficiency 115VAC or 230VAC or 220-240VAC

Product Description

Payment & Shipping Terms:

Features:

1. As one of the basic lines of motion control products applied to household appliances, the 80AC-01 series single phase AC motors offers a uniform outer diameter. To further explain, the stator diameter of this range of product is 80cm.
2. Steel-extruded front and rear end-shields make the product more compact in design as well as easier to be repaired if any.
3. Both the copper windings and the quality ball bearings also enable the complete motor to run with higher efficiency but a lower noise.
4. The insulation class of F can be reached.
5. The options of either single shaft extension or double one can be offered.

Applications:

These ranges of single phase AC motors are widely applied to window air conditioners as well as indoor airflow facilities.

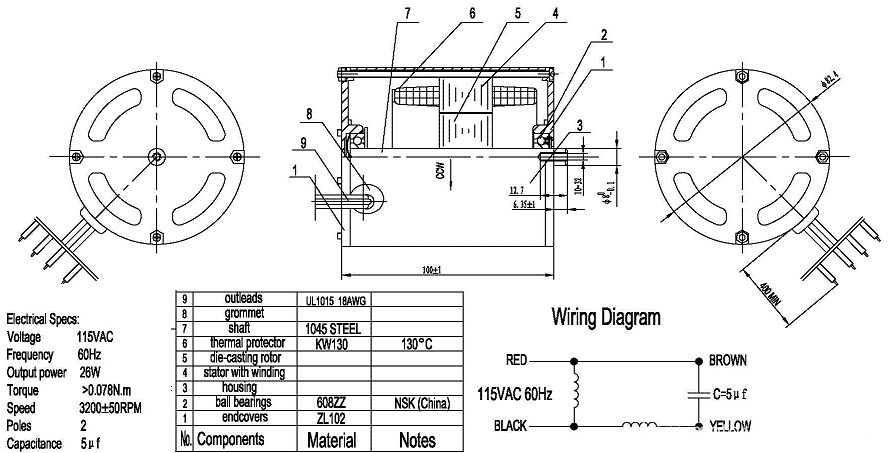

Outline drawings: (Unit=mm)
