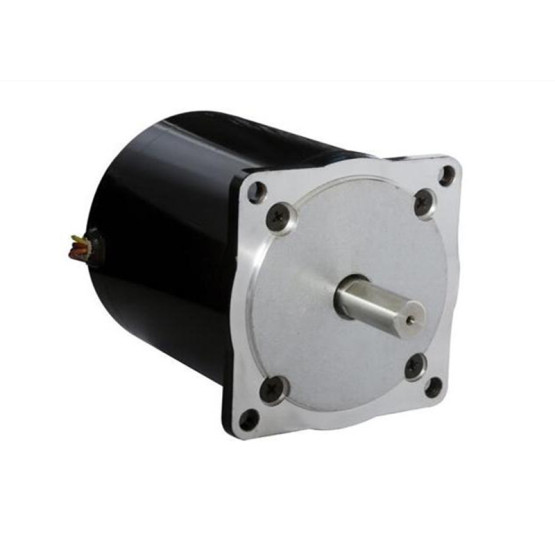

Model No.: 86BYGH hybrid stepper motor/ frame size nema 34 with step angle 1.8 and high torque

Product Description

Features:

1.    As one of the most important components in motion control industry, the 86mm BYGH series of hybrid stepper motor is a brushless, synchronous electric motor that converts digital pulses into mechanical shaft rotation.

2.    The motor frame size is NEMA 34. More options for motor body length or holding torque are available, depending on the torque-speed curve you finally want to achieve for your end applications.

3.    Currently, our hybrid stepper motor is having a maximum of 7.6N.m static torque. Rotating a precise angle, typically 1.8°with a step angle accuracy of -/+5%, the stepper motor also can be supplied with available modifications including custom windings, extended shaft, mounting configurations and etc.

4.    We will inspect the stepper motors one by one especially in dielectric strength before packaging to make sure each of our products will properly rotate in order to ensure working safety.

Application:

They are widely applied to the fine positioning applications such as but not limited to milling & drilling CNC machines, computerized knitting machines, wood processing machinery, and scrap choppers.

Specifications:

*The aboved are just representative products. Derivative products can be produced according to customer’s requirements.

Outline Dimensions (Unit=mm)：

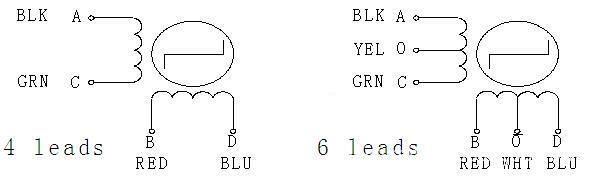

Wiring Diagram:

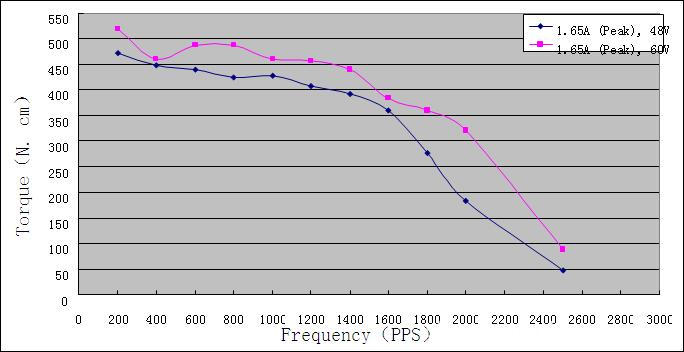

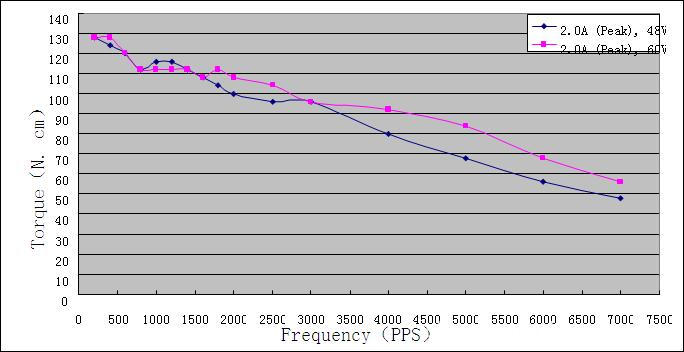

Torque-frequency Characteristics:

Motor Type: 86BYGH450A-001

Driver Type: SD-2H086MB

Driver Mode: 4 subdivisions

Motor Type: 86BYGH450B-001

Driver Type: SD-2H086MB

Driver Mode: 4 subdivisions
