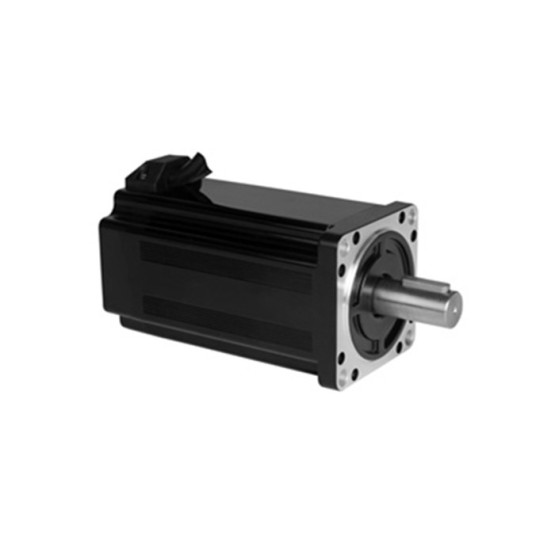

60BLF brushless dc motor/ nema 24 bldc motor 60mm motor with 3 phase and 9 poles
Basic Info
Model No.: 60BLF brushless dc motor/ nema 24 bldc motor 60mm motor with 3 phase and 9 poles
Product Description
Quick Details
Place of Origin: Jiangsu,China(Mainland)
Usage:Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification:CCC, ROHS
Type:Micro Motor
Torque:0.75Nm
Construction:Permanent Magnet
Commutation:Brushless
Protect Feature:Waterproof
Speed(RPM):3000RPM
Continuous Current(A):9.0A
Output Power:230W
Voltage(V):36V
type:bldc motor
Technique Parameter:

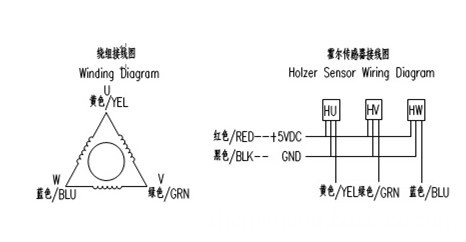

1. Winding type: Y connection
2. Hall effect angle: 120 degree electrical angle
3. Shaft run out: 0.025mm
4. Insulation Class: B
5. Dielectric strength: 500VDC for one minute
6. Environmental conditions: -10~40℃
7. Other: we can customize specific voltage performance, brake, shaft and so on. Please contact us if you need more information of this motor.
Application:
This series of brushless dc motor can applied widely in many fields. Such as boat, car, electric bicycle, fan as well as home appliance.
Specifications:
|
Motor Model |
60BLF-01 |
60BLF-02 |
60BLF-03 |
60BLF-04 |
60BLF-05 |
|
Number of Phase |
3 |
3 |
3 |
3 |
3 |
|
Number of Poles |
8 |
8 |
8 |
8 |
8 |
|
Rated Voltage (VDC) |
48 |
48 |
48 |
220 |
220 |
|
Rated Speed (Rpm) |
3000 |
3000 |
3000 |
3000 |
3000 |
|
Rated Torque (N.m) |
0.4 |
0.8 |
1.27 |
0.64 |
1.27 |
|
Rated Power (W) |
125 |
250 |
400 |
200 |
400 |
|
Rated Current (A) |
4 |
7.5 |
11 |
1.45 |
2.9 |
|
Peak Current (A) |
12 |
22.5 |
33 |
4.35 |
8.7 |
|
Peak Torque (N.M) |
1.2 |
2.4 |
3.81 |
1.92 |
3.81 |
|
Rotor Inertia (kg.cm²) |
0.75 |
0.95 |
0.95 |
0.75 |
0.95 |
|
Torque Constant (N.m/A) |
0.1 |
0.107 |
0.11 |
0.44 |
0.44 |
|
Torque Constant (V/krpm) |
10.47 |
11.17 |
10.47 |
29 |
29 |
|
Line-Line Resistance (OΩ) |
1.5 |
0.6 |
0.5 |
10 |
2.2 |
|
Line-Line Inductance (mH) |
1.3 |
0.65 |
0.4 |
11 |
5.5 |
|

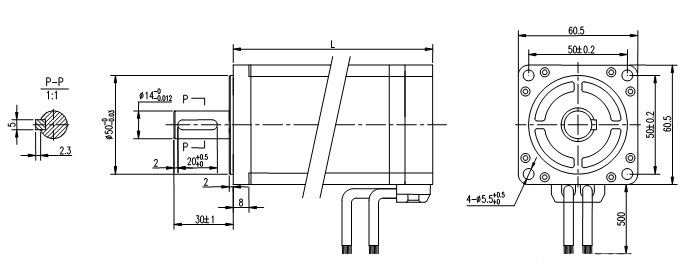

Length (mm) |
77.5 |
115.5 |
108 |
81.5 |
108 |
|
Weight (kg) |
0.88 |
1.37 |
1.37 |
0.9 |
1.4 |
*Note: We can produce according to customers’ requirements.
