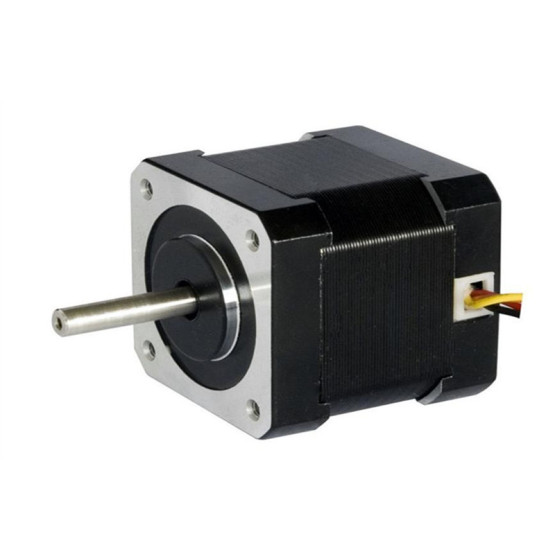

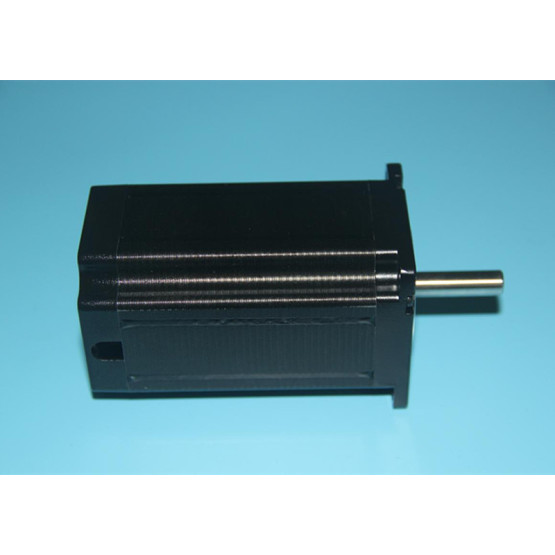

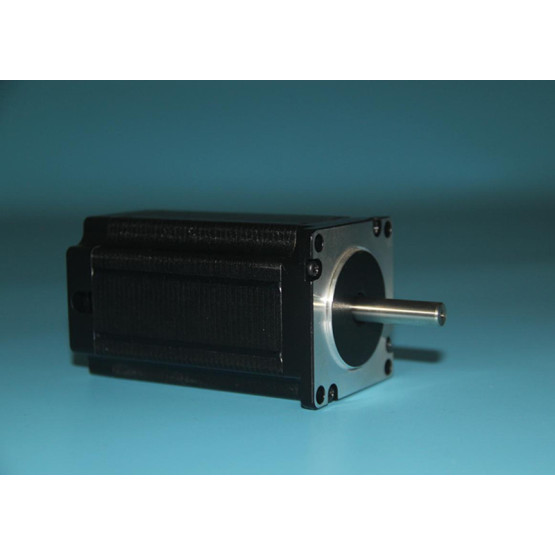

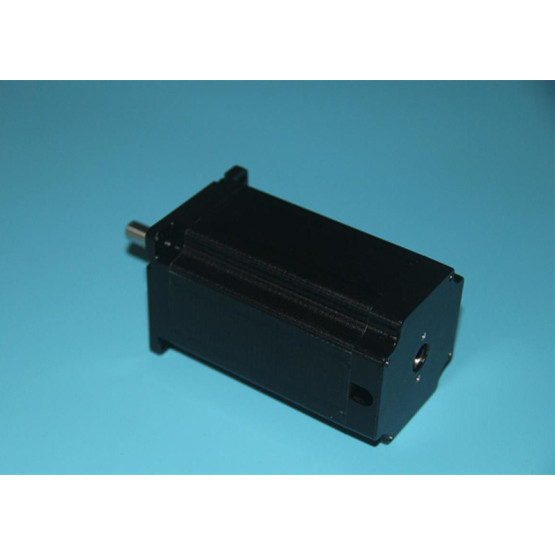

57BYGHM hybrid stepper motor/ NEMA 23 high precision and high torque step motor

Basic Info

Model No.: 57BYGHM hybrid stepper motor/ NEMA 23, high precision and high torque step motor

Product Description

General Introduction:

The series of 57BYGHM hybrid stepper motor is designed with step angle 0.9 degrees, in order to reach a higher precision.

The motor frame size is NEMA23. When the speed is proportional to the frequency of the input pulses, it can achieve a wide range of rotational speeds. The holding torque is from 3kg.cm to 15kg.cm. In addition, if you want to obtain higher torque, a proper gearbox can be directly connected to the shaft.

Please use our hybrid stepper motor at an ambient temperature of -20℃~50℃ to avoid any premature motor failure. Custom designs are available for OEM applications.

Applications:

This range of step motor has found a wide range of applications in industrial and commercial fields. To be specific, it is widely used in aerospace and robotics industries, machine tools, and printers and plotters.

Model	Motor Length L(mm)	Phase Voltage (V)	Phase Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Holding Torque (kg.cm)	Lead Wire (NO.)	Rotor Inertia (g.cm)	Detent Torque (Kg.cm)	Weight (Kg)
57BYGHM004	41	2	2.8	0.7	2.9	3	4	120	0.21	0.45
57BYGHM005	41	5	1	5	15.2	3.5	4	120	0.21	0.45
57HYGHM012	41	4.3	1.1	3.6	6.1	3	6	120	0.21	0.45
57BYGHM201	51	6.8	1.7	4	14	9	4	240	0.26	0.56
57BYGHM203	51	12.1	0.38	32	40	5.5	6	240	0.26	0.56
57BYGHM401	56	7.4	1	7.4	15	7.3	6	300	0.4	0.7
57BYGHM403	56	2.7	3	0.9	2	7.2	6	300	0.4	0.7
57BYGHM405	56	16.2	1.2	13.5	49	7	4	300	0.4	0.7
57BYGHM500	67	2.4	3	0.8	1.7	7	6	360	0.5	0.82
57BYGHM601	78	8.6	1	8..6	20	13	6	480	0.68	1
57BYGHM604	78	3.2	2.8	1.13	5	15	4	480	0.68	1

Specifications:

*The aboved are just representative products. Derivative products can be produced according to customer’s requirements.

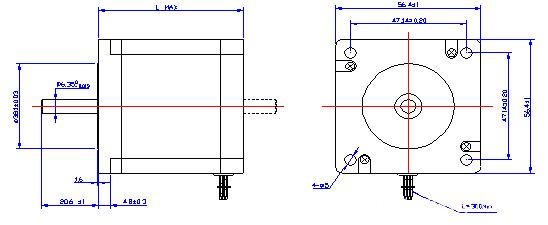

Dimensions:

(Unit=mm)

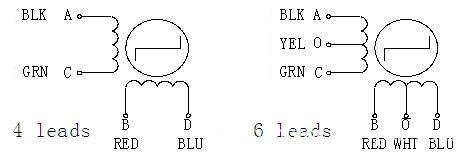

Wiring

Wiring

High Precision Step Motor Frame Size Nema 23 Holding Torque 3kg.cm to 15kg.cm
