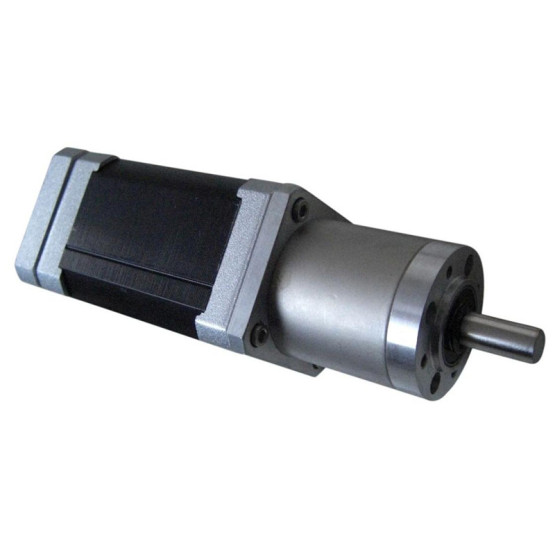

42BLF-P brushless dc geared motor/ 3 phase magnets NEMA 17 with planetary gear head

Basic Info

Model No.: 42BLF-P brushless dc geared motor/ 3 phase magnets NEMA 17 with planetary gear head

Product Description

42BLF-P brushless dc geared motor/ 3 phase magnets NEMA 17 with planetary gear head

Certification:	TS16949/RoHS
Model Number:	42BLF-AG

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	USD 29.00-35.00 per unit
Packaging Details:	Carton or negotiation
Delivery Time:	45 working days after received your payment
Payment Terms:	negotiation, T/T
Supply Ability:	30,000pcs/month

Welcome to Sherry Motors, your one stop superstore for motion control products since 2006. Our company incorporates R&D and production of premium motors. In addition, we can provide customization service. Our main products: DC motor, AC motor, Stepper motor, Spindle motor and so on. Please continue to browse the website for a complete listing of our product lineup.

Features:

8-pole and 3-phase windings with Wye configuration.
Nominal voltage is initially set up 24VDC while optional voltages are possible.
Aluminium alloyed die cast endcaps to be well machine-turned.
Closed-type construction with sealed ball bearings to prolong the motor life.
Planetary gearheads with 3 stages of speed reduction, are offered to help you with your choices in motion control.

Applications:

The applications designers would mostly like to choose our brushless DC motor for their applications such as light manufacturing, conveyor systems and medical equipment.

Specifications:

Model	No. of Pole	No. of Phase	Rated Voltage (VDC)	Rated Speed (RPM)	Rated Torque (N.m)	Rated Current (Amps)	Putout Power (Watts)	Motor Body Length L1(mm)	Weight (Kg)
42BLF01AG	8	3	24	4000	0.063	2.0	26	47	0.33
42BLF02AG	8	3	24	4000	0.125	3.5	52	63	0.48
42BLF03AG	8	3	24	4000	0.188	6.0	78	79	0.79

Gear ratio	4	5	13	19	27	51	71	100	139
NUMBER OF STAGE	1		2			3
MAX. ALLOWABLE TORQUE (N.m)	2		2.5			3
IINSTANT ALLOWABLE LOADING (N.m)	4		5			6
Length of gear box (mm)	31		39			46.5

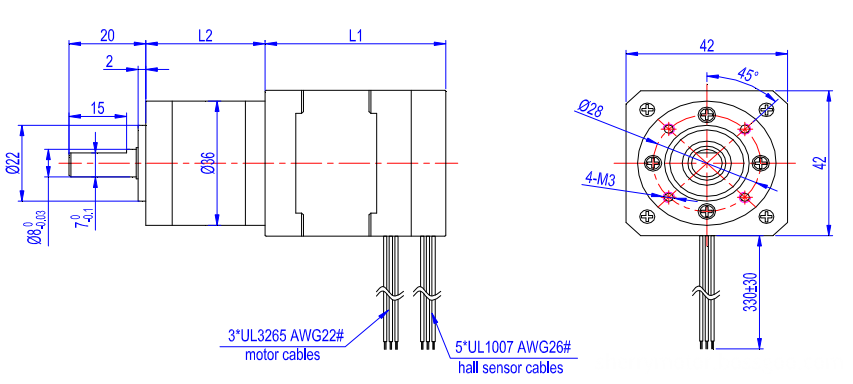

Dimensions:

(Unit=mm)

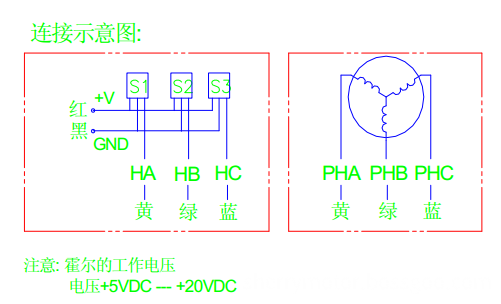

Wiring Diagram:

Suqare Brushledd Motor Geared Motors Nema 17 with Planetary Gear Head 3 Stages of Speed Reduction
