HC series ac linear actuator

Basic Info

Model No.: HC

Product Description

HC series ac linear actuator / 120v motor with power supply transformer

HC series ac linear actuator

Features:

1) Strong and robust design ,

2) Up to 4000N load capacity ,

3) quick speed , the quickest speed can arrive 55mm/s

4) Idea for industry applications

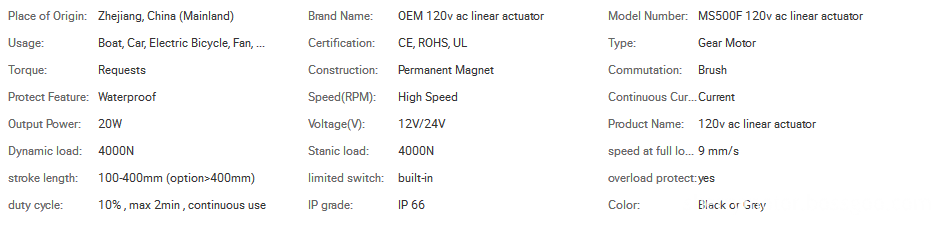

Model	HC series AC Linear Actuator
Dynamic Load Push (N)	4000
Dynamic Load Pull (N)	4000
Static Load Push (N)	4000
Static Load Pull (N)	4000
Input (VDC)	24/ 12
Speed at Full Load (mm/s)	9/ 18/ 55
Stroke Length (mm)	100~400 (option>400)
Mounting Position	H type, V type and 45 degrees type
Color	Black or grey
Limit Switch	Build-in
Overload Protection	Yes
Duty Cycle	10%, max 2 min, continuous use
IP Grade	IP66
Operating Temperature	0℃~+40℃
Optional Features	Only push option
Standard	CE

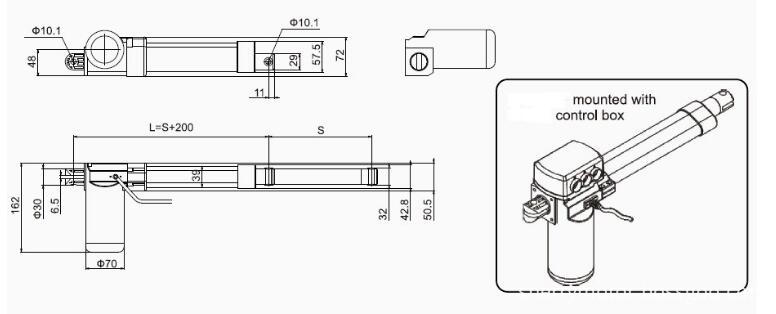

Introduction of AC Linear Actuator

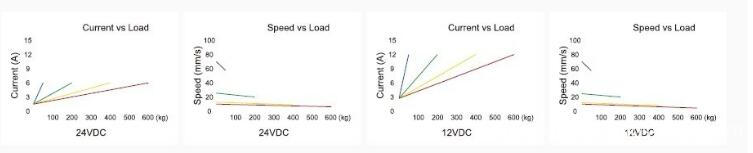

AC Linear Actuator performance

HC Series Linear Actuator Max Speed 55mm/s Linear Actuator for Industry Applications
