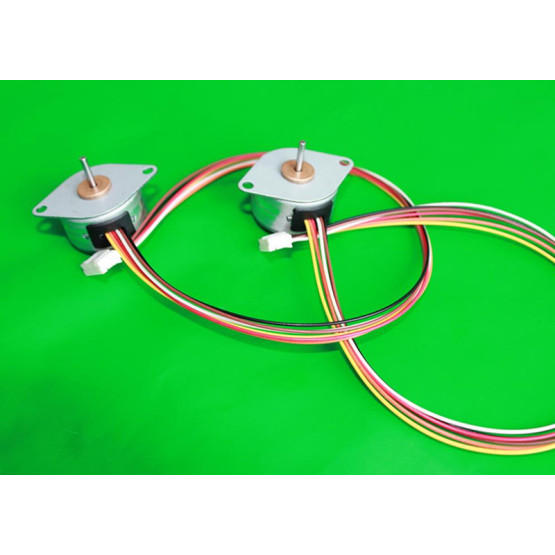

    High precision punched housing PM stepping motor 25mm 4 phase stepper motor

    Contact Now

    Basic Info


    Model No.: High precision punched housing PM stepping motor 25mm , 4 phase stepper motor


    Product Description



    Certification:

    TS-16949/RoHS/ISO14001

    Model Number:

    25BY48L

    Payment & Shipping Terms:

    Minimum Order Quantity:

    1000pcs

    Price:

    USD 5.90-7.90 per unit

    Packaging Details:

    Carton or negotiation

    Delivery Time:

    45 working days after received your payment

    Payment Terms:

    negotiation, T/T

    Supply Ability:

    150,000pcs/month



    Features:

    1. Set up at 7.5° or 15° in step angle and the frame size is at 25mm.
    2. 2-phase or 4-phase windings to produce the holding torque varying from 80g.cm to 200g.cm.
    3. The PM stepper motor requires no “teeth” as are typically found in the variable reluctance (VR) stepper motor. This makes the PM stepper motor an extremely popular choice for many applications.
    4. Reliable performance with low current and low rotor inertia.
    5. Custom mounting plates and connectors or terminals are available to meet your OEM designs.
    6. An appropriate gear wheel can be introduced for some specific applications.

    Applications:

    They are widely applied to DVD/CD-ROM drivers, air swing for indoor unit of air conditioner and valves in household water/gas systems.



    Specifications:






    Model

    Step Angle

     ( ° )

    No. of Phase

    Voltage

    (VDC)

    Current

     (A)

    Resistance

     (Ω)

    Inductance

     (mH)

    Holding Torque

    (g.cm)

    Detent Torque

    (g.cm)

    Rotor Inertia

    (g/cm²)

    25BY24L01

    15

    4

    9

    0.45

    20

    14.3

    150

    75

    1.0

    25BY24L02

    15

    4

    12

    0.4

    30

    6

    150

    75

    1.0

    25BY2416

    15

    2

    24

    0.066

    360



    80

    25

    0.6

    25BY48L01

    7.5.

    4

    5

    0.5

    10

    1.8

    110

    45

    1.0

    25BY48L029

    7.5

    4

    24

    0.4

    60

    11.6

    200

    50

    1.0

    25BY4803B

    7.5

    4

    12

    0.25

    50

    10.5

    160

    35

    1.0

    25BY4809

    7.5

    4

    20

    0.43

    50

    12

    155

    45

    1.0

    25BY48Y-02

    7.5

    2

    5

    0.5

    10

    5.6

    150

    40

    1.0

    EDM

    7.5

    4

    12

    0.08

    150

    36

    85

    30

    1.0

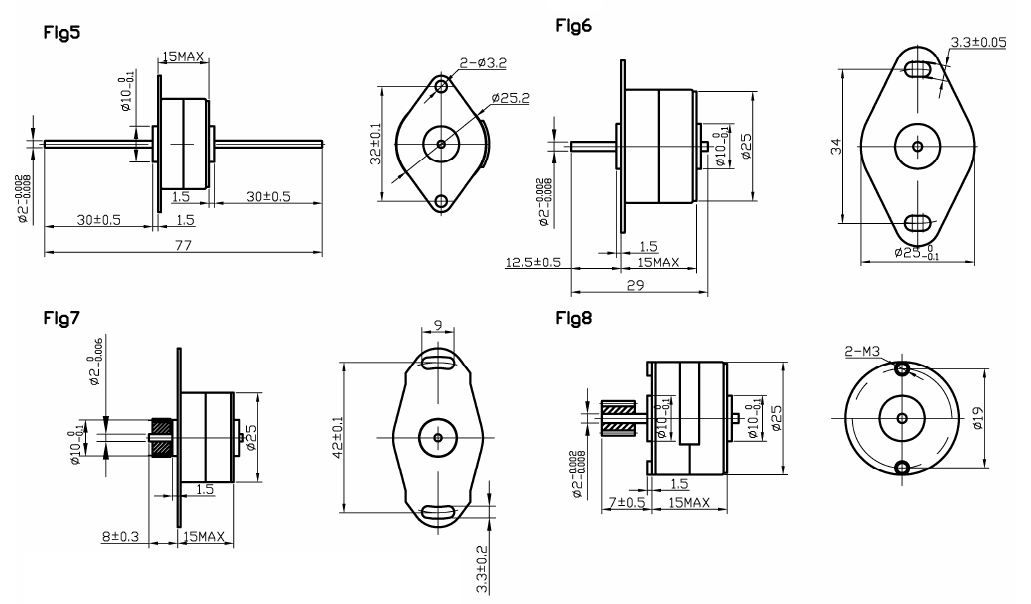

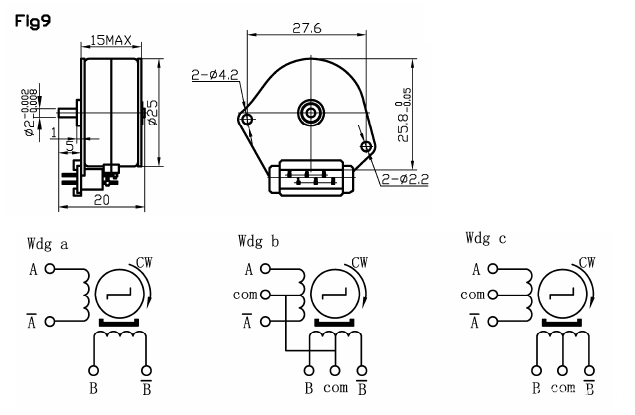

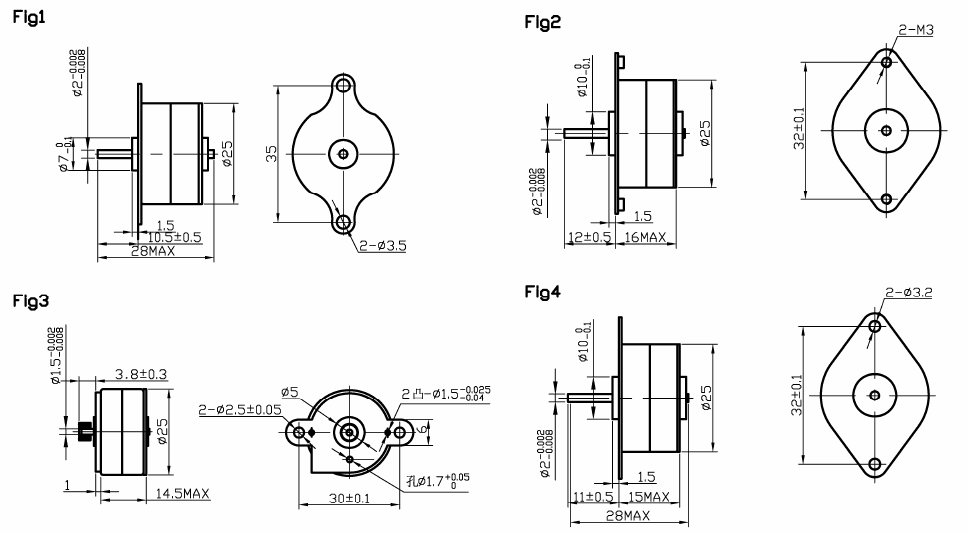

    Dimensions:

    (Unit=mm)


    High precision punched housing PM stepping motor 25mm , 4 phase stepper motor


    High precision punched housing PM stepping motor 25mm , 4 phase stepper motor


    High precision punched housing PM stepping motor 25mm , 4 phase stepper motor


    High Precision Punched Housing PM Stepper Motors 25mm 4 Phase PM Stepping Motor
