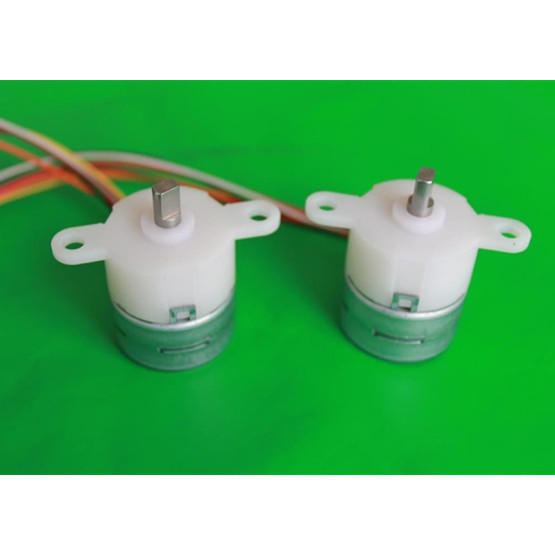

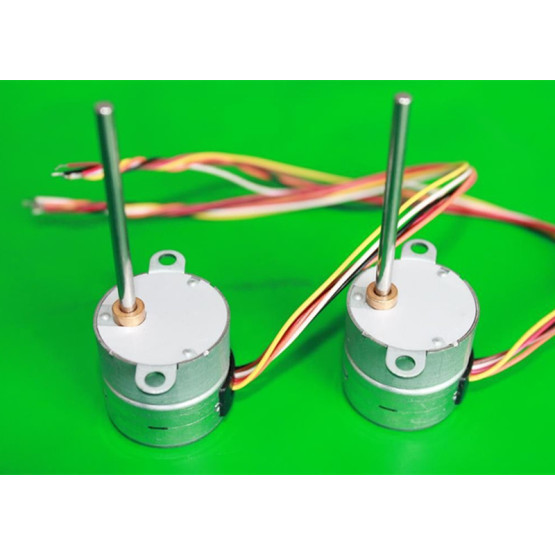

25mm PM stepper motors with permanent magnets / plastic or metal gears

Basic Info

Model No.: 25mm PM stepper motors with permanent magnets / plastic or metal gears

Product Description

Certification:	TS-16949/RoHS/ISO14001
Model Number:	25BYHJ

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	USD 9.90-13.90 per unit
Packaging Details:	Carton or negotiation
Delivery Time:	45 working days after received your payment
Payment Terms:	negotiation, T/T
Supply Ability:	100,000pcs/month

Features:

25mm PM stepper motor operates on the reaction between a permanent-magnet rotor and an electromagnetic field and normally we use ferrite sintered magnets as one of the key components.
The PM stepper motors are optionally built with a planet gearbox, whose main material is POM.
Planetary gearheads are used in applications requiring low backlash, compact size, high efficiency and resistance to shock and etc.
Our PM stepping motors, with planetary gearheads, are reliable in motion control industry due to a highly efficiency in power transmission and greater stability.
Currently, a new version of PM stepping motors, being accompanied by spur gearheads, is also available in our catalog because the spur gearheads take advantages of high speed ratios and high torque output.

Applications:

You can easily find an existing of 25mm PM stepper motors in precise automotive instrumentations, medical equipment and machine tools. Our 25mm PM stepping motors, with the gearheads, are also seen in the applications such as rotary lasers, monitoring instruments and packaging machines.

Specifications:

Model	Step Angle ( ° )	No. of Phase	Voltage (VDC)	Current (A)	Resistance (Ω)	Inductance (mH)	Holding Torque (g.cm)	Detent Torque (g.cm)	Rotor Inertia (g/cm²)	Leads
25BYHJ05-01	7.5/5	2	2.6	0.52	5	2.5	1/5	550	450	75(At 200pps)
25BYHJ10-01	7.5/10	4	5	0.5	10	7.0	1/10	820	720	400(At 100pps)
25BYHJ20-01	15/20	4	12	0.08	150	31.6	1/20	700	600	500(At 100pps)
25BYHJ30-01	7.5./30	4	13.3	0.11	120	24	1/30	780	680	750(At 300pps)
25BYHJ30.3	15/30.3	2	7	0.28	25	14.5	1/30.3	710	610	500(At 300pps)
25BYHJ76-01	15/76	4	5	0.25	20	5.8	1/76	530	430	720(At 200pps)
25BYHJ49	3.75/47.32	2	12	0.3	20	12.6	1/47.32	1000	9000	2000(At 500pps)
25BYHJ60-06	7.5/60	2	12	0.12	100	46.9	1/60	750	50	2200(At 200pps)
25BYHJ75-01	7.5/75	4	12	0.08	145	32	1/75	790	690	1100(At 400pps)
25BYHJ100-01A	7.5/100	4	12	0.1	120	26	1/100	720	620	2000(At 200pps)

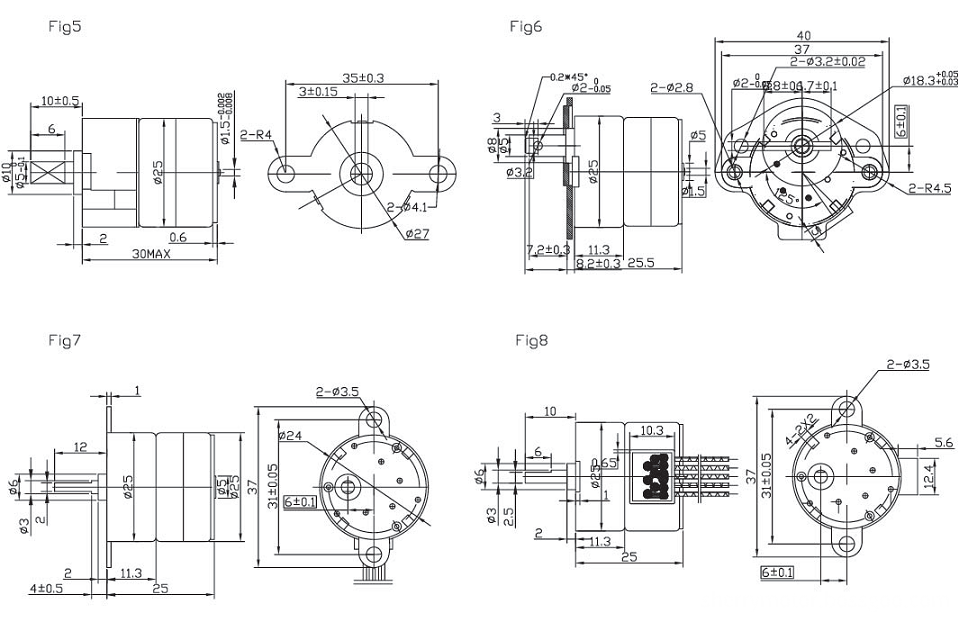

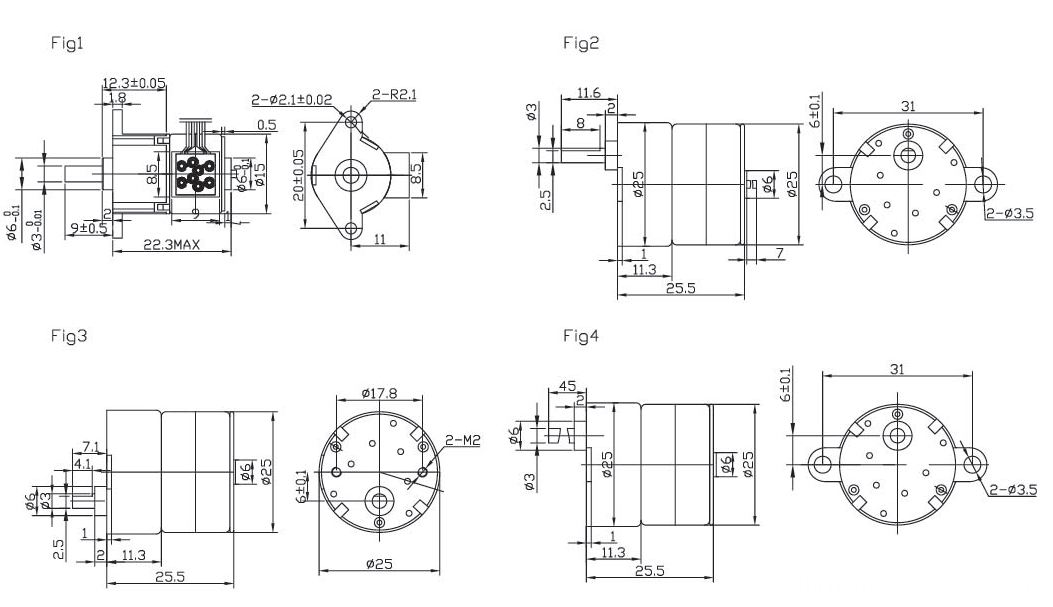

Dimensions:

(Unit=mm)

25mm Stepper Motor with Permanent Magnets Plastic or Metal Gears Pm Motor with Planet Gearbox
