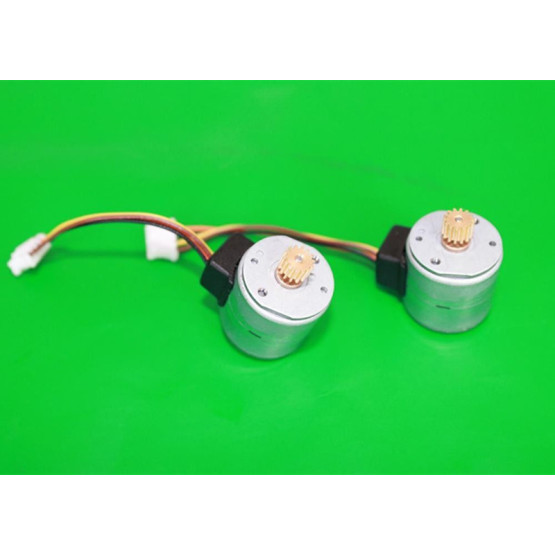

    2 phase windings small stepper motors / 5v stepper motor for card reader

    Contact Now

    Basic Info


    Model No.: 2 phase windings small stepper motors / 5v stepper motor for card reader


    Product Description



    Certification:

    TS-16949/RoHS/ISO14001

    Model Number:

    20BY20L

    Payment & Shipping Terms:

    Minimum Order Quantity:

    3000pcs

    Price:

    USD 6.90-8.90 per unit

    Packaging Details:

    Carton or negotiation

    Delivery Time:

    45 working days after received your payment

    Payment Terms:

    T/T, negotiation

    Supply Ability:

    100,000pcs/month



    Features:

    1. Often referred as a “tin can” or “canstack” motor.
    2. Being with a typical step angle of 18°, our PM stepper motor is a solution to the applications where a low cost and low-resolution are sufficient.
    3. The PM stepper motors have been optimized in structure by moving the PCB (printed circuit board for short) out of the motor body to make the motor assembly more efficiently.
    4. Further measures have been taken to keep the motor away from dust by installing a black PBT cover around the PCB.
    5. A brass gear wheel is added onto the end of extended shaft to transfer a bigger holding torque to the application while our PM stepper motor rotates with a less noise and vibration.

    Applications:



    They are widely applied to time clock, card reader, teaching instrument and Micro-printer.



    Specifications:



    Model

    Step Angle

    (°)

    No. of Phase

    Voltage

    (VAC)

    Current

    (A)

    Resistance

    (Ω)

    Inductance

    (mH)

    Holding Torque

    (g.cm)

    Detent Torque

    (g.cm)

    Rotor Inertia

    (g/cm²)

    20BY20L01

    18

    2

    5

    0.5

    10

    4.3

    60

    20

    0.6

    20BY20L02

    18

    4

    5

    0.4

    13

    7

    40

    20

    0.6

    20BY20L014

    18

    4

    12

    0.4

    30



    55

    7.5

    0.6

    20BY20Y02

    18

    2

    5

    0.33

    15

    5.5

    50

    10

    0.6

    20BYUAG2

    18

    4

    12

    0.07

    170

    42.

    35

    7.5

    0.6

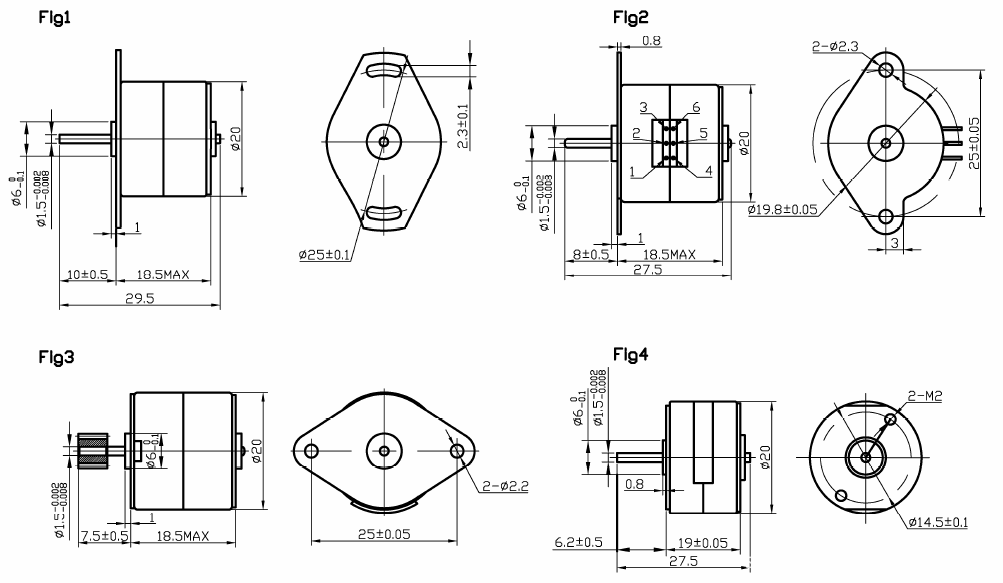

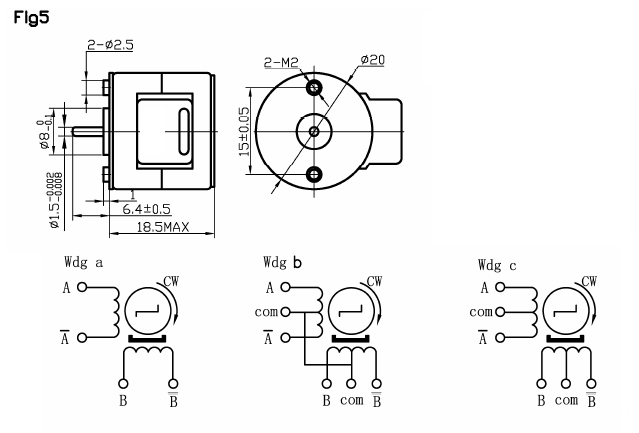

    Dimensions:
    (Unit=mm)


    2 phase windings small stepper motors / 5v stepper motor for card reader


    2 phase windings small stepper motors / 5v stepper motor for card reader
