Basic Info

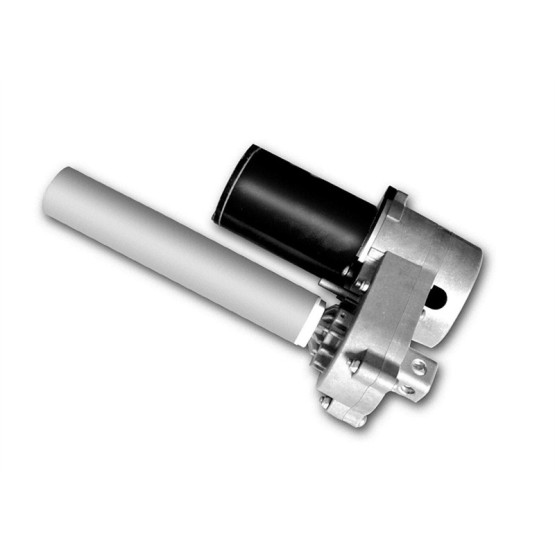

Model No.: ZQTG08 dc linear actuator

Product Description

Product Code：

DC power source / metal shells / protection level IP54 / Max. loading capacity 6000N / maximally 700mm in full stroke.

Product Details:

Payment & Shipping Terms:

Features:

1、 The DC linear actuator transfers the rotational output of its motor to the final straight-line actuation movement via gear trains or lead screw arrangements, both of which seem to be involved into our current model of DC linear actuator.
2、 The straight-line motion is used to run a huge number of different applications, from tiny, precision camera functions to massive industrial machinery components.
3、 The linear actuator can be powered with either 24VDC or 36VDC to obtain maximally the loading capacity as much as 6000N. It can operate at 25mm/s to the most extent while the longest stroke is 700mm.
4、 This model of DC linear actuator has been updated both in workmanships and key components like windings, ball bearings and gear sets to prolong its life.


Applications:

They are perfect for the applications such as solar panel tracking, door and vent controllers and household floor washers.

Specifications:

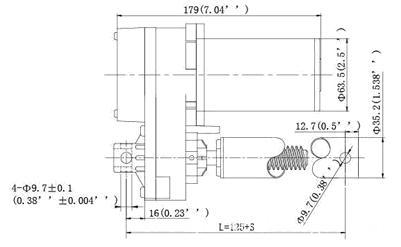

Dimensions:
