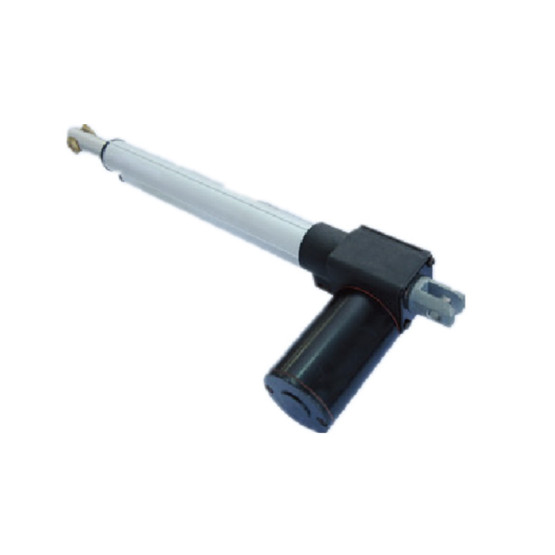

    ZQTG07 dc linear actuator/ max speed 8rpm protect level IP43

    Contact Now

    Basic Info


    Model No.: ZQTG07 dc linear actuator


    Product Description

    Product Code：


    DC power source / metal shells / protection level IP43 / Max. loading capacity 6000N / maximally 400mm in full stroke / maximally 8mm/s speed



    Product Details:

    Brand Name:

    Sherry Motors

    Model Number:

    ZZQ-TG07

    Certification:

    UL certified /ISO9000

    Place of Origin:

    China

    Payment & Shipping Terms:


    Minimum Order Quantity:

    100pcs

    Price:

    negotiation

    Payment Terms:

    negotiation

    Supply Ability:

    10000pcs/month

    Delivery Time:

    45 working days after received your payment

    Packaging Details:

    Carton or negotiation


    Features:


    1、 Input voltage: 24VDC.
    2、 Max. loading capacity 6000N
    3、 Maximally 400mm in full stroke
    4、 Maximally 8mm/s speed
    5、 .Gear ratio:44:1
    6、 Duty cycle:20%


    Applications:


    They are perfect for the applications such as solar panel tracking, door and vent controllers and household floor washers.


    Specifications:


    Model

    ZQTG07

    Input

    24VDC

    Load Capacity

    6000N

    Speed Max

    8mm/s

    Standard Stroke

    50 100 150 200 250 300 350 400

    Gear Ratio

    44:1

    Duty Cycle

    20%

    Protection Level

    IP43

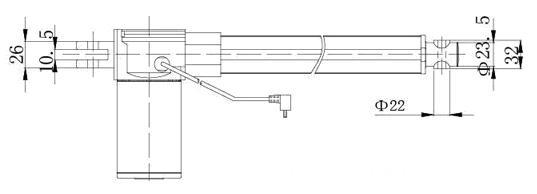

    Dimensions:


    ZQTG07 dc linear actuator / dimension




    ZQTG07 Dc Linear Actuator Max Speed 8rpm Protect Level IP43
