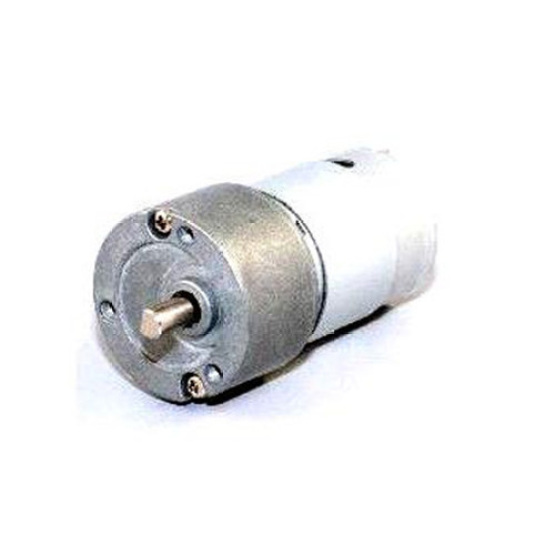

    RS-395PH brushed dc gear motor/ permanent magnet gear motor with shielding cover worm geared motor

    Contact Now

    Basic Info


    Model No.: RS-395PH brushed dc gear motor/ permanent magnet gear motor with shielding cover worm geared mot


    Product Description

    RS-395PH brushed dc gear motor/ permanent magnet gear motor with shielding cover, worm geared motor





    Certification:

    TS16949/RoHS

    Model Number:

    RS-395PH

    Payment & Shipping Terms:

    Minimum Order Quantity:

    100pcs

    Price:

    USD 12.90-14.90 per unit

    Packaging Details:

    Carton or negotiation

    Delivery Time:

    45 working days after received your payment

    Payment Terms:

    negotiation, T/T

    Supply Ability:

    50,000pcs/month





    Features:

    1. The motor body size is in diameter of 27.7mm.
    2. A shielding cover to help with an elimination of EMI.
    3. Dual ball bearings to extend the life cycle.
    4. Well-inspected spur gearhead in diameter of 33mm to reduce the noise.
    5. More options in gear ratios.
    6. Nominal voltage is at 12VDC or 24VDC.

    Applications:

    They are widely applied to oiling machines, banking equipment and some other automatic facilities.



    Specifications:



    Model

    Voltage (VDC)

    No Load

    At Max. Efficiency

    Stall

    Operating Range

    Nominal

    Speed

    (r/min)

    Current

    (A)

    Speed

    (r/min)

    Current

    (A)

    Torque

    (g.cm)

    Output Power

    (W)

    Torque

    (g,cm)

    Current

    (A)

    RS-395PH-2272

    6.0~12.0

    12.0

    6000

    0.12

    5113

    0.692

    108.4

    5.67

    733.3

    3.987

    RS-395PH-15140

    15.0~24.0

    24.0

    6000

    0.07

    5055

    0.374

    73.5

    5.94

    466.7

    2.003





    DC permanent magnet gear motor with shielding cover , worm geared motor



    Rated Voltage

    (VDC)

    Reduction Rate

    1/8

    1/20

    1/50

    1/125

    1/312.5

    1/781.25

    1/1935.125

    12V

    Rated Torque (kg.cm)

    0.7125

    1.603

    3.608

    6

    6

    6

    6

    Rated Speed (rpm)

    750

    300

    120

    48

    19.2

    7.68

    3.07

    24V

    Rated Torque (kg.cm)

    0.712

    1.603

    3.608

    6

    6

    6

    6

    Rated Speed (rpm)

    750

    300

    120

    48

    19.2

    7.68

    3.07





    Reduction Ratio

    L(mm)

    Reduction Ratio

    L(mm)

    1/8

    20

    1/312.5

    24.5

    1/20

    1/781.25

    29

    1/50

    1/1953.125

    1/125

    24.5

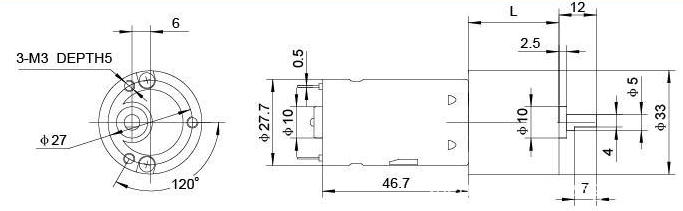

     Outline Drawing:

    (Unit=mm)


    RS-395PH brushed dc gear motor/ permanent magnet gear motor with shielding cover, worm geared motor
