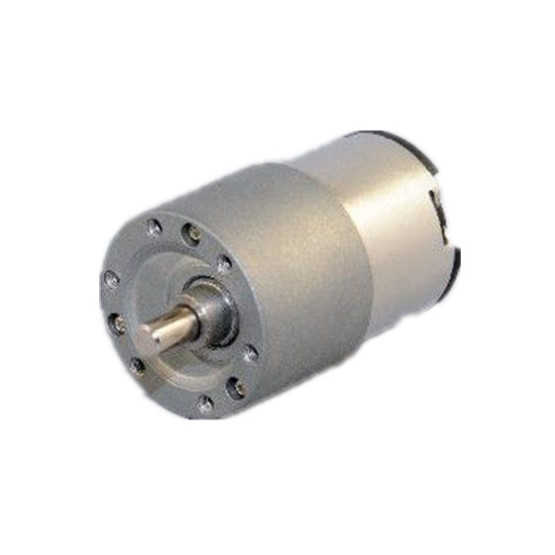

    RK-520CH brushed dc gear motor/ high precision punched housing 12v worm gear motor 37mm copper windings

    Contact Now

    Basic Info


    Model No.: RK-520CH brushed dc gear motor/ high precision punched housing 12v worm gear motor 37mm copper windi


    Product Description

    RK-520CH brushed dc gear motor/ high precision punched housing 12v worm gear motor 37mm copper windings



    Certification:

    TS16949/RoHS

    Model Number:

    RK-520CH

    Payment & Shipping Terms:

    Minimum Order Quantity:

    100pcs

    Price:

    Packaging Details:

    Carton or negotiation

    Delivery Time:

    45 working days after received your payment

    Payment Terms:

    negotiation, T/T

    Supply Ability:

    50,000pcs/month



    Features:

    1.  The motor body diameter is determined at 34.6mm.
    2.  Dynamically balanced armatures to obtain a smooth operation.
    3. Optional nominal voltage is at either 12VDC or 24VDC.
    4. Variable gear ratios with flexible gearhead length.
    5. The Spur gearhead is dedicated assembled with the motor to avoid any extra noise.

    Applications:

    They are widely applied to banking equipment, medical instruments and massage chairs.

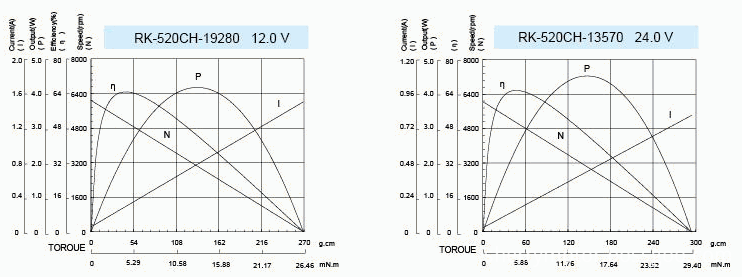

    Specifications:

    Model

    Voltage (VDC)

    No Load

    At Max. Efficiency

    Stall

    Operating Range

    Nominal

    Speed

    (r/min)

    Current

    (A)

    Speed

    (r/min)

    Current

    (A)

    Torque

    (g.cm)

    Output Power

    (W)

    Torque

    (g,cm)

    Current

    (A)

    RK-520CH-19280

    9.0~18.0

    12.0

    6091

    0.057

    5099

    0.293

    43.9

    2.28

    269.3

    1.506

    RK-520CH-13570

    18.0~30.0

    24.0

    6046

    0.029

    5085

    0.153

    46.8

    2.42

    294.4

    0.812



    Rated Voltage

    (VDC)

    Reduction Rate

    1/10

    1/18.1

    1/30

    1/50

    1/67

    1/90

    1/106

    1/150

    1/185

    1/270

    1/400

    1/450

    1/564

    1/713

    1/1003

    12V

    Rated Torque (kg.cm)

    0.36

    0.58

    0.96

    1.44

    1.93

    2.6

    2.75

    3.9

    4.81

    6

    6

    6

    6

    6

    6

    Rated Speed (rpm)

    510

    281

    170

    102

    76.1

    56.7

    48.1

    34

    27.6

    18.9

    12.7

    11.33

    9.041

    7.151

    5.084

    24V

    Rated Torque (kg.cm)

    0.38

    0.62

    1.03

    1.54

    2.07

    2.78

    2.94

    4.16

    5.13

    6

    6

    6

    6

    6

    6

    Rated Speed (rpm)

    508

    280

    169

    102

    75.8

    56.4

    47.9

    33.9

    27.5

    19.5

    12.2

    11.8

    9.5

    7.6

    5.3




    Reduction Ratio

    L

    1/9.2~1/30

    21.3

    1/50~1/90

    24.5

    1/106~1/270

    26

    1/381~1/1100

    28.5

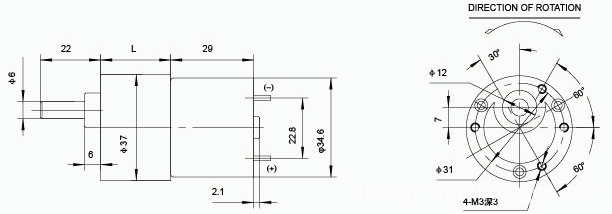

    Outline drawing:

    (Unit=mm)


    RK-520CH brushed dc gear motor/ high precision punched housing 12v worm gear motor 37mm copper windings

    RK-520CH brushed dc gear motor/ high precision punched housing 12v worm gear motor 37mm copper windings
