Basic Info

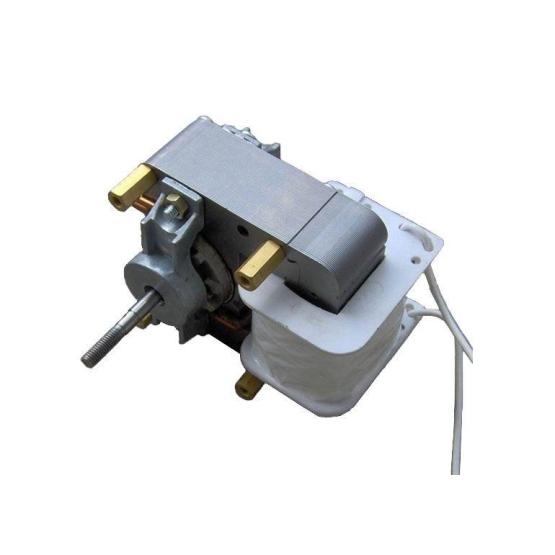

Model No.: Refrigerator fans 61mm shaded pole motors dustproof , AC induction motors

Product Description

Payment & Shipping Terms:

Features:

1.     The stator lamination size is uniformed at 71mm in side length while the stator height can be variable from 38mm to 56mm to meet different requirements from the customers.

2.     The designs of both front and rear brackets can be especially made for a further and better assembly with the applications.

3.     The copper windings are well covered by the insulation film, which enables our motor products to be both water-proof and dust-proof.

4.     Insulation Class F is available.

Applications:

This range of shaded-pole motors is regularly utilized for humidifiers, household fans, as well as many other small electronic devices which typically require low torque and adjustable rotor speeds.

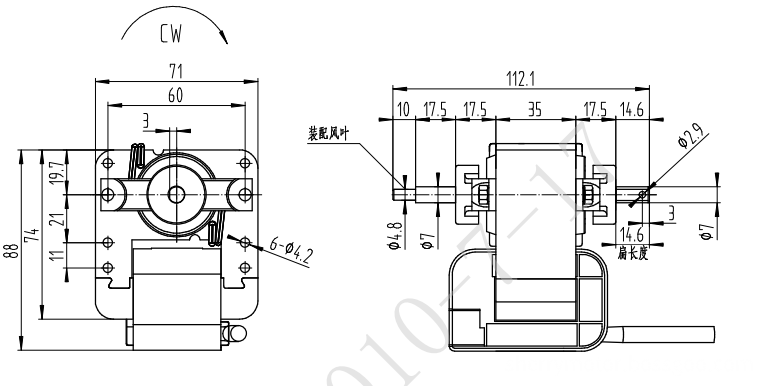

Outline drawings:

(Unit=mm)
