Basic Info

Model No.: Closed type construction shaded pole motors CE for HVAC industry

Product Description

Payment & Shipping Terms:

Features:

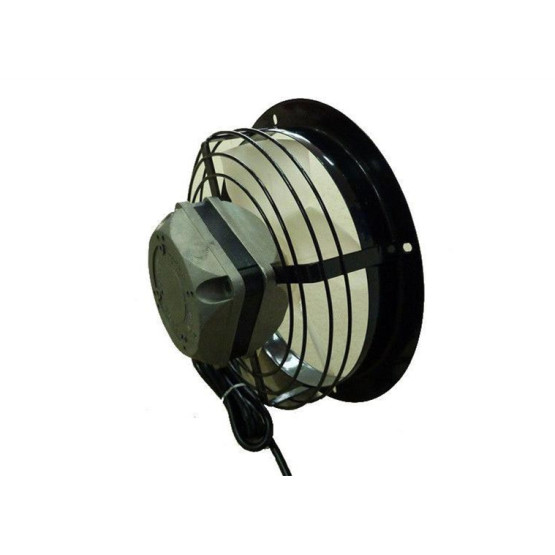

1. These 8213 series of shaded pole motors are accompanied by the fan blades and fan cover, whose formations and main material can be varied from one application to the other.
2. The side length of the stator lamination stacks is determined at 84mm.
3. In sharp contrast to less expensive shaded pole motors commonly seen in the market, the 8213 series motors are more reliable by formally having both front and rear endshields to be aluminium die-cast.
4. High quality copper windings and ball bearings are involved into for durability. This closed-type motor structure can endure the extreme weather condition.
5. Shaft, cables and mounting configurations are available to allow you more choices in end-application design.

Applications:

Certified by CSA and CE, this range of shaded pole motors is extensively utilized in HVAC industry and any other household applications.

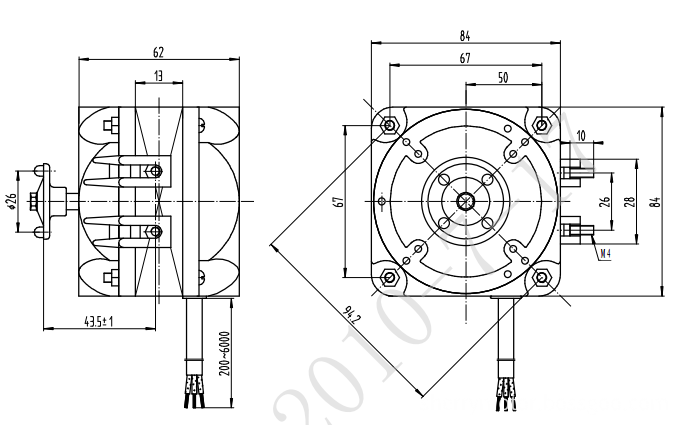

Outline drawings

(Unit=mm)
