GRA series ac linear motor/ 230vac lifting using linear motor/ customized

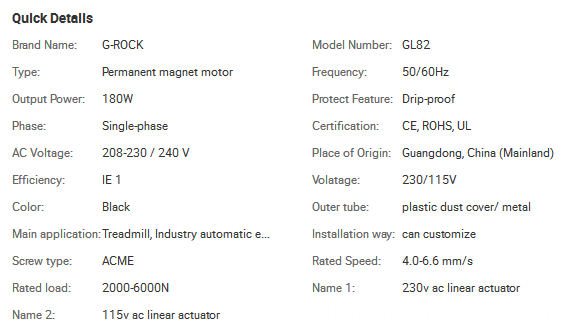

Basic Info

Model No.: GRA series ac linear motor

Product Description

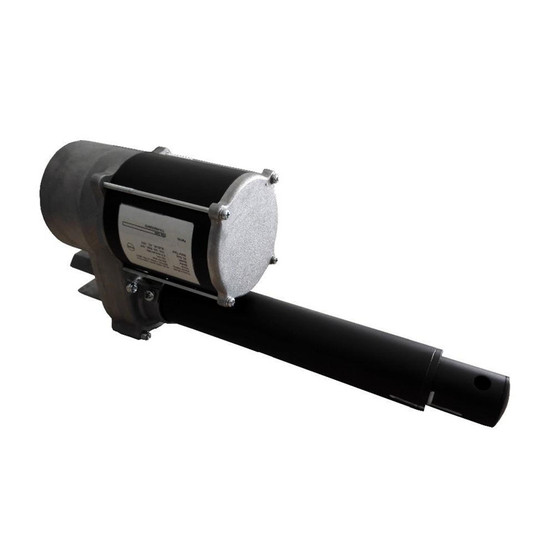

GRA series ac linear motor/ 230vac lifting using linear motor, customized

Feature of 230v AC linear actuator
GRA series AC linear actuator is widely used in treadmill, Industry equipment, farm machine, etc. with heavy load capability, install easy.

1.AC115/230V
2.Motor with thermal protection (+120±5 °C)
3.Acme screw
4.Self-locking
5.Integrated limit switches 5.Integrated limit switches
6.Gear box (metal)
7.Duty cycle 17%
8.Max Load:6000N

Model	Voltage (V)	Force (N)		Max Speed (mm/s)		Stroke (mm)	Retr Length (mm)	IP Level (IP)	Weight (kg)
Model	Voltage (V)	Push	Pull	No load	Full load	Stroke (mm)	Retr Length (mm)	IP Level (IP)	Weight (kg)
GRA255	115/230	2000	2000	7.2	6.6	100~600	S+190/200/215	54	4
GRA256	115/230	2500	2500	5	5.5	100~600	S+190/200/215	54	4
GRA258	115/230	3000	3000	4.55	4	100~600	S+190/200/215	54	4
GRA355	115/230	3000	3000	7.2	6.6	100~600	S+190/200/215	54	4.5
GRA356	115/230	3500	3500	6	5.5	100~600	S+190/200/215	54	4.5
GRA358	115/230	4000	4000	4.5	4	100~600	S+190/200/215	54	4.5
GRA455	115/230	4000	4000	7.2	6.6	100~600	S+190/200/215	54	5
GRA456	115/230	4500	4500	6	5.5	100~600	S+190/200/215	54	5
GRA458	115/230	5000	5000	4.5	4	100~600	S+190/200/215	54	5

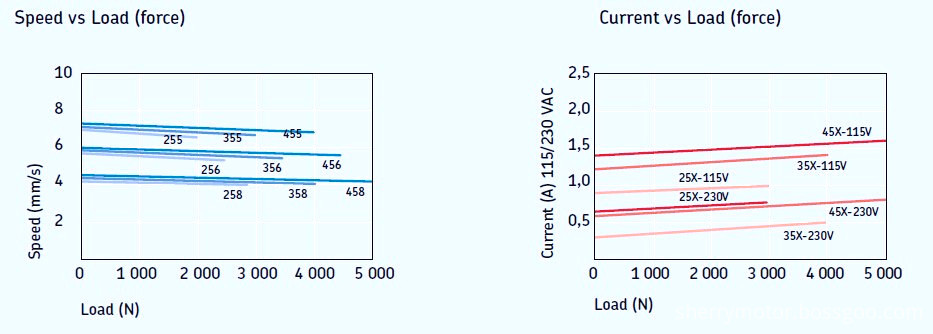

GRA series ac linear motor/ characteristic

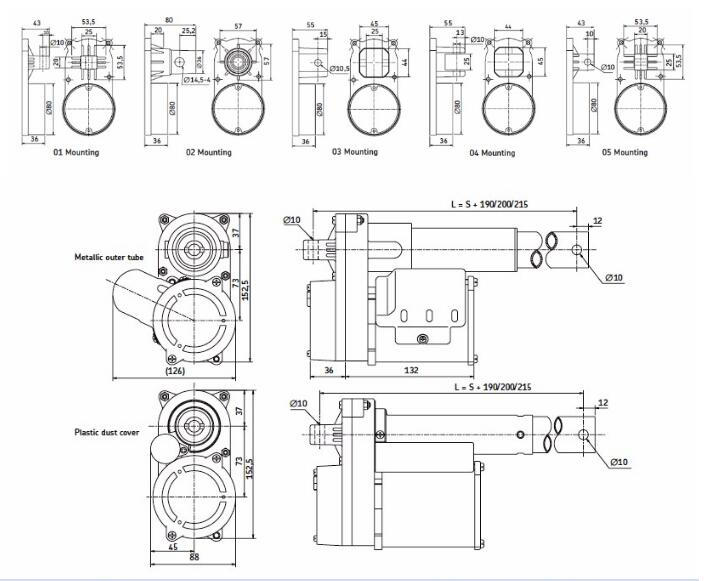

GRA series ac linear motor/ dimension

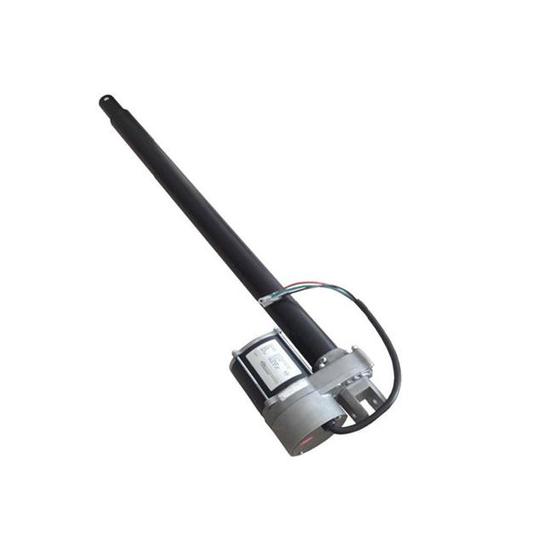

GRA Series Ac Linear Motor 230vac Lifting Using Linear Motor Motor for Farm Machine
