86YD1019 ac linear actuator/ driving force operates at 115VAC with a capacitor of 22.5uf
Basic Info
Model No.: 86YD1019 ac linear actuator
Product Description
Product Code:
frame size 86mm / lead screw / driving force operates at 115VAC with a capacitor of 22.5uf / UL certified
Product Details:
Brand Name: |
Sherry Motors |
Model Number: |
86YZD1-019 |
Certification: |
UL certified /ISO9000 |
Place of Origin: |
China |
Payment & Shipping Terms:
Minimum Order Quantity: |
500pcs |
Price: |
negotiation |
Payment Terms: |
negotiation |
Supply Ability: |
10000pcs/month |
Delivery Time: |
45 working days after received your payment |
Packaging Details: |
Carton or negotiation |
Features:

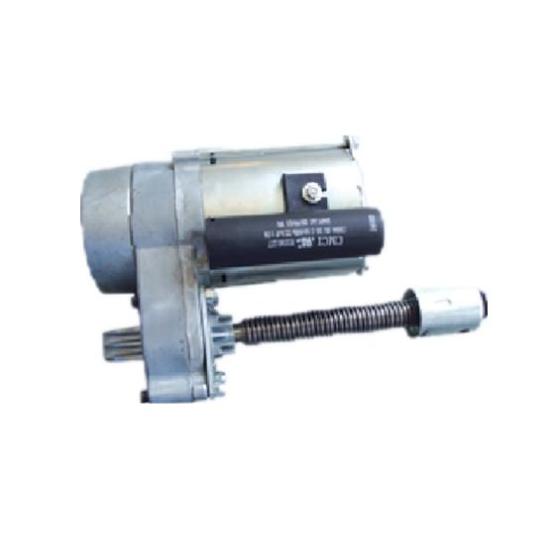

1、 This traveling-nut linear actuator has an AC motor that stays attached to one end of the lead screw through a gearbox.
2、 The motor rotates the lead screw and the lead nut is restrained from rotating, therefore the nut travels up and down the lead screw.
3、 The speed ratio is designed at 19.4:1 while any custom ones can be supplied if a larger Qty is ordered.
4、 The linear actuator is powered by the AC single phase motor, which operates at 115VAC with a capacitor of 22.5uf.
5、 The prototype of AC linear actuator has been enduring the fielding testing throughout an enough strokes at our lab before it goes directly to bulk production.
6、 The motor is UL certified with a rated power of 1/10HP.
Applications:
They are widely applied to packaging machines, assembly machines, medical imaging and diagnostics
Specifications:
Rated
Power (HP)
1/10
Volts
(V)
115 VAC
Gear
Ratio
19.4:1
Rated
Thrust
---
ACME
Shaft
3/4-8×1
Travel
Length
---
Capacitor
22.5uf

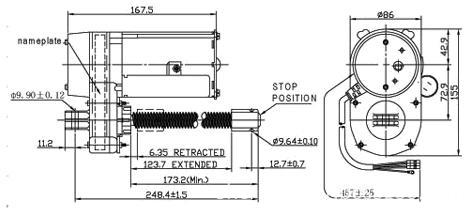

Dimensions:
