Basic Info

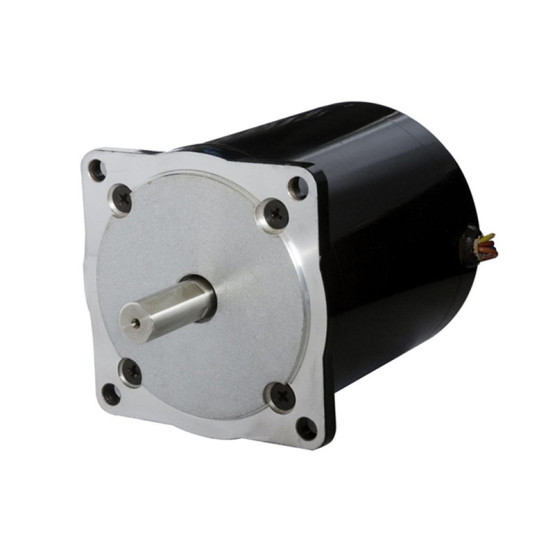

Model No.: 2-phase high precision hybrid stepper motor NEMA 34 flexible motor body length

Product Description

Payment & Shipping Terms:

Feature:

1. Being as one of the most important components in motion control industry, 86mm BYGH series of hybrid stepper motors are of brushless, synchronous electric motors that convert digital pulse into mechanical shaft rotation.
2. Currently, our hybrid stepper motor is having a holding torque Max. at 7.6N.m
3. Rotating at a precise angle, typically 1.8 degrees with a step angle accuracy of +/-5%, our hybrid stepper motors also can be supplied with available modifications including windings, extended shaft, mounting configurations and etc.
4. Dielectric strength testing at 500VAC for 1 minute will be done to our hybrid stepper motors before delivery to make sure each of our products will properly rotate in a manner of working safety.

Applications:
   They are widely applied to the fine positioning applications such as but not limited to milling& drilling CNC machines, computerized knitting machines, wood processing machinery as well as scrap choppers.

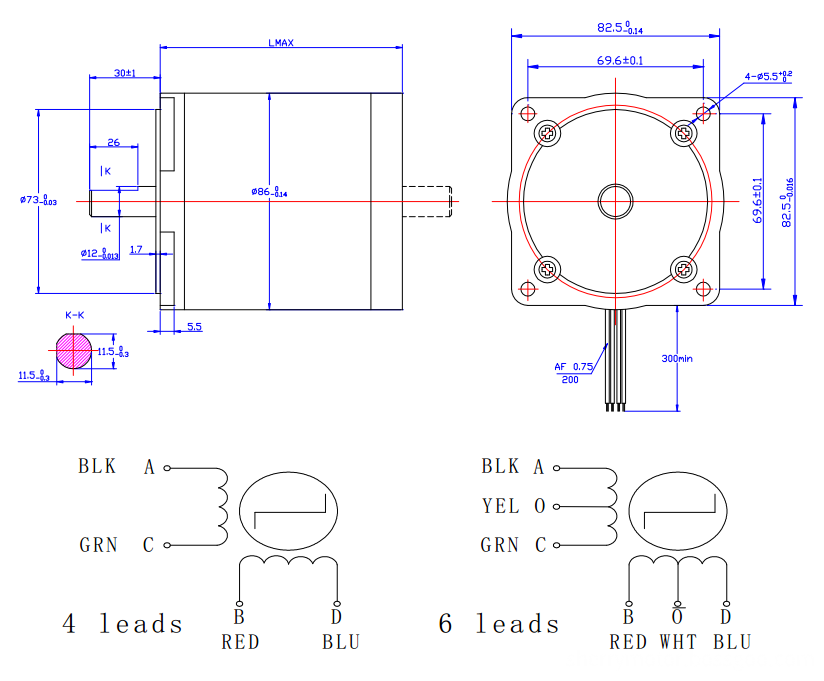

Specifications:

(Unit=mm)
