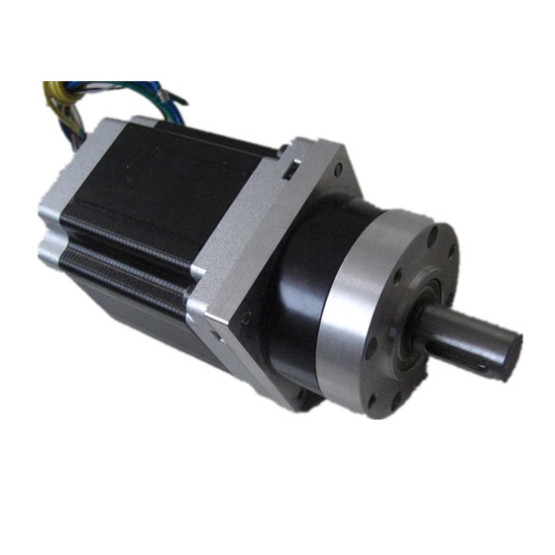

    86BLF-P brushless dc gear motor/ planetary gearbox nema 34 hi density stacks of stator

    Contact Now

    Basic Info


    Model No.: 86BLF-P brushless dc gear motor/ planetary gearbox nema 34 hi density stacks of stator


    Product Description

    86BLF-P brushless dc gear motor/ planetary gearbox nema 34 hi density stacks of stator





    Certification:

    TS16949/RoHS

    Model Number:

    86BLF-PAG

    Payment & Shipping Terms:

    Minimum Order Quantity:

    100pcs

    Price:

    USD 99.00-119.00 per unit

    Packaging Details:

    Carton or negotiation

    Delivery Time:

    45 working days after received your payment

    Payment Terms:

    negotiation, T/T

    Supply Ability:

    10,000pcs/month







    Features:

    1. 8-pole and 3-phase copper windings for a more reliable performance.
    2. Being without commutator and brushes, our BLDC motor will survive long-lasting and smooth operation.
    3. Nd-Fe-B magnets to provide a more powerful torque.
    4. Being accompanied with planetary geabox with 3 stages of speed reduction, our brushless DC motor is supplying you with more choices in motion control.

    Applications:
    They are widely applied to the applications of medical and laboratory equipment, material handling and air flowing facilities.



    Specifications:



    Model

    No. of Pole

    No. of Phase

    Rated Voltage (VDC)

    Rated Speed (RPM)

    Rated Torque (N.m)

    Rated Current

    (Amps)

    Output Power

    (Watts)

    Motor Body Length L1(mm)

    Weight

    (Kg)

    86BLF07PAG

    8

    3

    48

    3000

    2.1

    22

    660

    124

    4.8

    86BLF06PAG

    8

    3

    48

    3000

    1.8

    18

    550

    109

    3.2

    86BLF01PAG

    8

    3

    48

    3000

    1.4

    14

    440

    94

    2.75

    86BLF02PAG

    8

    3

    48

    3000

    1.05

    9.6

    330

    81

    2.2

    86BLF03PAG

    8

    3

    48

    3000

    0.7

    6.6

    220

    67

    1.75

    86BLF04PAG

    8

    3

    48

    3000

    0.35

    3.9

    110

    57

    1.1



    Gear ratio

    5

    6

    20

    36

    80

    216

    NUMBER OF STAGE

    1

    2

    3

    Length of gear box  (mm)

    55

    73

    91

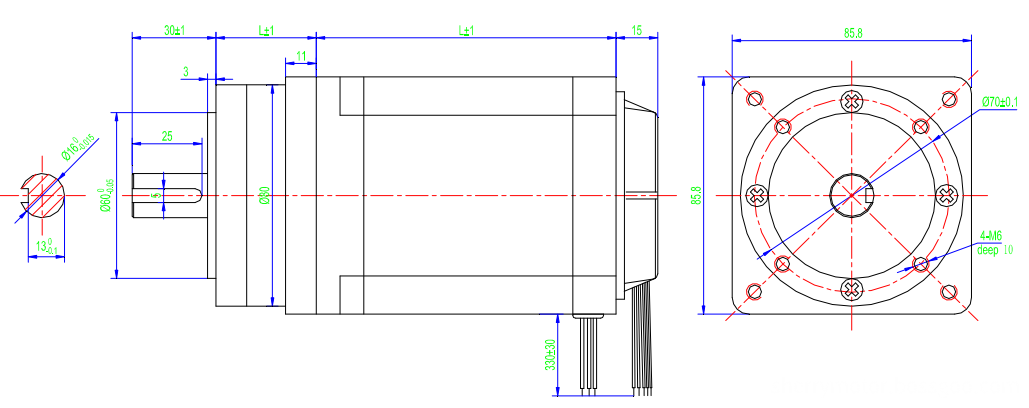

    Dimensions:

    (Unit=mm)


    86BLF-P brushless dc gear motor/ planetary gearbox nema 34 hi density stacks of stator

    86BLF-P brushless dc gear motor/ planetary gearbox nema 34 hi density stacks of stator

    Planetary Gearbox Nema 34 High Density Stacks of Stator 8 pole and 3 phase Copper Windings
