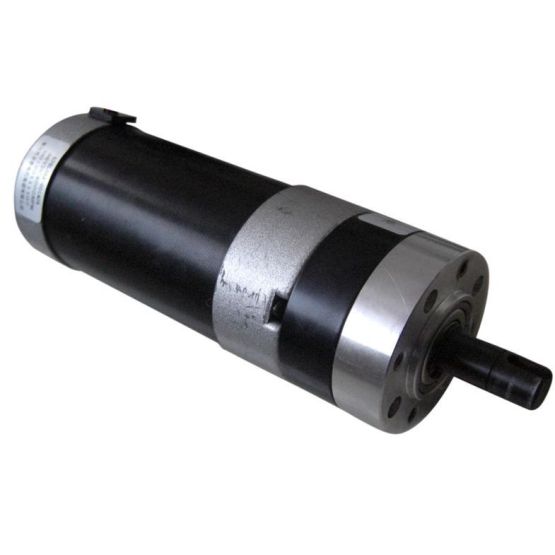

57BL-P brushless dc gear motor/ NEMA 23 planetary geared motors with high-gauge steel housing

Contact Now

Basic Info

Model No.: 57BL-P brushless dc gear motor/ NEMA 23 planetary geared motors with high-gauge steel housing

Product Description

57BL-P brushless dc gear motor/ NEMA 23 planetary geared motors with high-gauge steel housing

Certification:	TS16949/RoHS
Model Number:	57BL-PAG

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	USD 51.00-59.00 per unit
Packaging Details:	Carton or negotiation
Delivery Time:	45 working days after received your payment
Payment Terms:	negotiation, T/T
Supply Ability:	60,000pcs/month

Features:

4-pole and 3 phase windings in Wye configuration.
12VDC or 24VDC as the nominal voltage.
Well-known trademarks of rare earth magnets to improve the motor performances.
Without any brushes to keep a longer servicing life while eliminating the rating of maintenance.
A planetary gearhead, with 3 stages of gear reduction, is involved into to greatly increase the torque.

Applications:

Our bldc motor, with a planetary gearbox, is an ideal solution to the applications such as the pumps, material handling machines and textile machines.

Specifications:

Model	No. of Pole	No. of Phase	Rated Voltage (VDC)	Rated Speed (RPM)	Rated Torque (N.m)	Rated Current (Amps)	Output Power (Watts)	Motor Body Length L1(mm)	Weight (Kg)
57BL01PAG	4	3	24	3000	0.057	1.5	18	41.5	0.43
57BL02PAG	4	3	24	3000	0.11	2.5	34	46.5	0.5
57BL03PAG	4	3	24	3000	0.165	3.2	52	56.5	0.67
57BL04PAG	4	3	24	3000	0.22	4.5	69	66.5	0.75
57BL05PAG	4	3	24	3000	0.33	6.7	103	86.5	1
57BL06PAG	4	3	24	3000	0.44	8.8	138	103.5	1.25

Gear ratio	4	5	13	19	27	51	71	100	139
NUMBER OF STAGE	1		2			3
MAX. ALLOWABLE TORQUE (N.m)	2		2.5			3
IINSTANT ALLOWABLE LOADING (N.m)	4		5			6
Length of gear box (mm)	31		39			46.5

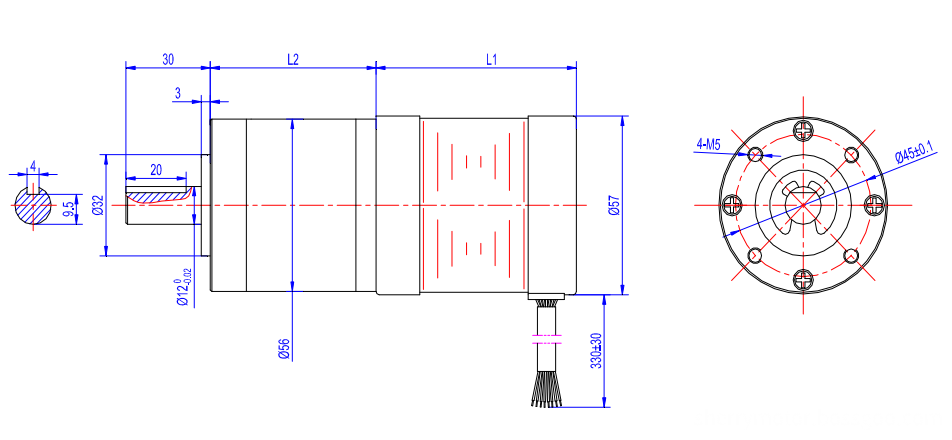

Dimensions:

(Unit=mm)

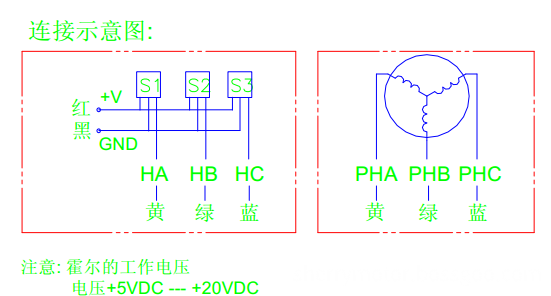

Wiring Diagram:

High gauge Steel Housing Motor Geared Motor WithTS16949/RoHS 12v or 24v Longer Servicing Life
