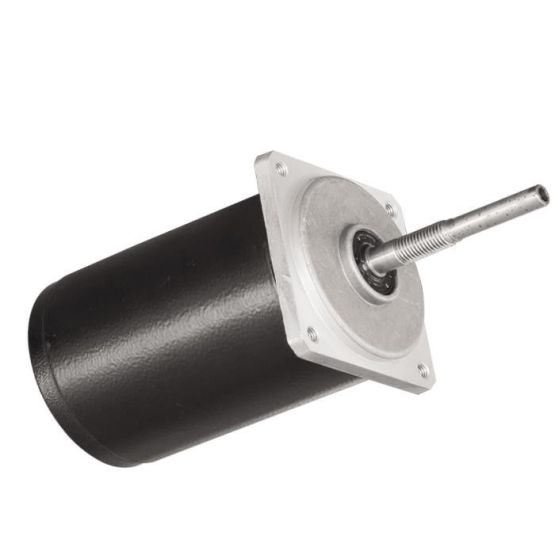

    76mm DC motors with permanent magnets 12VDC or 24VDC as the working voltage from 30 to 190W

    Contact Now

    Basic Info


    Model No.: 76mm DC motors, with permanent magnets 12VDC or 24VDC as the working voltage from 30 to 190W


    Product Description

    Certification:

    ISO9002

    Model Number:

    SH-76DCB

    Payment & Shipping Terms:

    Minimum Order Quantity:

    100pcs

    Price:

    Packaging Details:

    Carton or negotiation

    Delivery Time:

    45 working days after received your payment

    Supply Ability:

    50K per month



    Features：

    1. Precisely machine-turn commutators before the final assembly to avoid any sparking or extra noise.
    2. Flexible motor body length to try to fit your end-applications.
    3. A closed-type construction can endure an outdoor running.
    4. A nice speed VS torque curve to meet your requirements in application design.
    5. Customized mounting patterns are available upon request.

    Applications:

    Widely applied to seeders, blenders as well as door openers.



    Specifications:

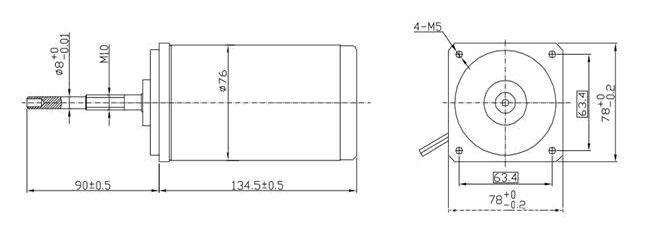

    Dimension

    Model

    Voltage

    (VDC)

    No Load Current

    (A)

    No Load Speed

    (rpm)

    Torque

    (Nm)

    Rated Current

    (A)

    Rated Speed

    (rpm)

    Rated Power

    (W)

    Length

    (mm)

    SH-76ZYT02

    24

    1.5

    3850

    0.4

    9

    3200

    134

    133.5

    SH-76ZYT05

    12

    0.9

    3200

    0.12

    5

    3088

    39

    115

    SH-76ZYT07

    12

    2.6

    3850

    0.4

    16

    3200

    134

    133.5

    SH-76ZYT08

    24

    0.9

    3200

    0.12

    2.3

    3088

    39

    115



    Working Voltage 12v or 24v Customized Mounting Patterns Motor Used for Door Openers
