    73mm DC motors with replaceable brushes / rugged / heavy-gauge steel housing

    Contact Now

    Basic Info


    Model No.: 73mm DC motors with replaceable brushes / rugged / heavy-gauge steel housing


    Product Description

    Certification:

    ISO9001

    Model Number:

    SH-73DCB

    Payment & Shipping Terms:

    Minimum Order Quantity:

    100pcs

    Price:

    USD 19.00-29.00 per unit

    Packaging Details:

    Carton or negotiation

    Delivery Time:

    35-40 days

    Supply Ability:

    10,000pcs/month

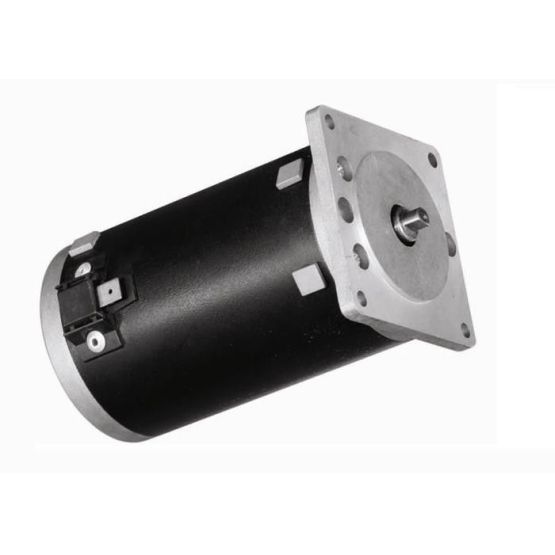

    73mm DC motors with replaceable brushes / rugged / heavy-gauge steel housing





    Features:

    1. Frame size at 73mm having a compact design.
    2. High-quality copper windings and dynamically balanced armatures to ensure the high efficiency.B
    3. NMB or SKF sealed ball bearings and rare earth magnets to extend the life-cycle with durability.

    Applications:

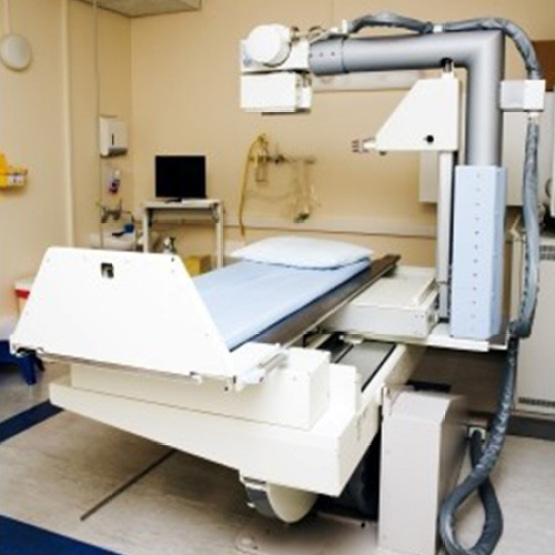

    Our 73mm brushed DC motors are widely applied to powered chairs, X-ray machines and door openers.



    Specifications:

    Dimension


    Model

    Voltage

    (V)

    No Load Current

    (A)

    No Load

    Speed

    (rpm)

    Torque

    (Nm)

    Rated Current

    (A)

    Rated Speed

    (rpm)

    Rated Power

    (W)

    Length

    (mm)

    SH-73ZYT01

    12

    3

    4400

    0.3

    15

    3700

    116

    145

    SH-73ZYT02

    12

    2.5

    4000

    0.4

    1.5

    3200

    134

    155

    SH-73ZYT03

    12

    2

    3600

    0.5

    18

    3000

    157

    165

    SH-73ZYT05

    24

    2

    3600

    0.5

    10

    3000

    157

    165



    73mm Dc Motor Brushes Replaceable Brushes Motor Dc Applied to Powered Chairs Medical Instruments
