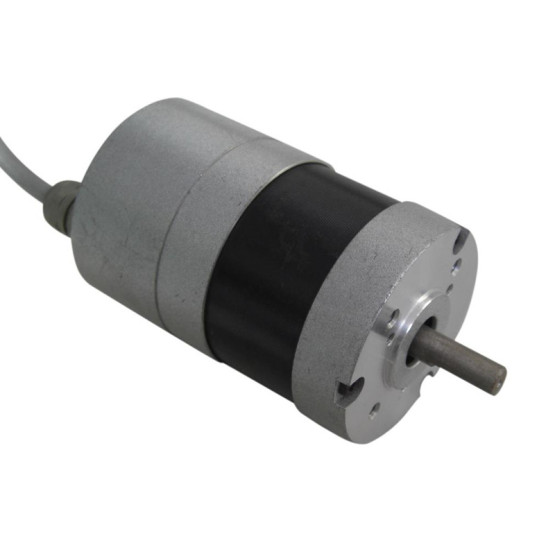

24VDC Internal Driver Brushless DC Motor

Basic Info

Model No.: 24VDC Internal Driver Brushless DC Motor

Product Description

General Description

Winding Connection Type ——————————Star Connection
Insulation Class ——————————B-class Insulation
Ambient Temperature——————————-20℃~+50℃
Insulation Resistance ——————————Min 100MΩ . 500VDC
Dielectric Strength ——————————500V AC 1 Minute

Electrical Specifications

Model		57BID01-24	57BID02-24	57BID03-24	57BID04-24	57BID05-24	57BID06-24
Number of Poles		4
Number of Phase		3
Rated Voltage	VDC	24±10%
Rated Speed	RPM	3000	3000	3000	3000	3000	3000
Rated Torque	N.M	0.057	0.11	0.165	0.22	0.33	0.44
Rated Current	Amps	1.2	2.3	3	4.4	6.1	8.5
Output Power	Watts	15	34	52	69	103	138
Peak Torque	N.m	0.18	0.38	0.58	0.8	1.2	1.6
Peak Current	Amps	3.6	6.9	9	13	19.8	25.8
Torque Constant	N.m/Amps	0.062	0.06	0.06	0.062	0.06	0.062
Counter EMF Constant	V/KRPM	6.3	6.3	6.3	6.3	6.3	6.3
Rotor Inertia	g.cm²	32	42	58	72	106	140
Motor Length	mm	71	76	86	96	116	136
Weight	Kg	0.6	0.7	0.85	0.95	1.25	1.6

Note: Products can be customized.

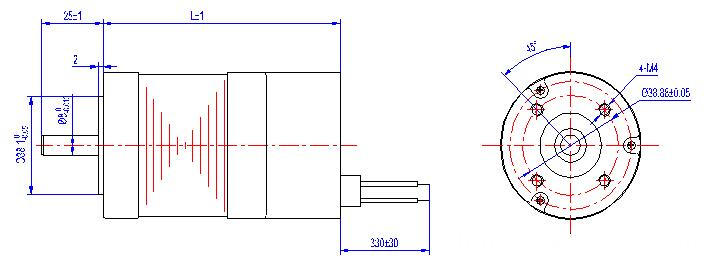

Outline Dimensions

Dimension

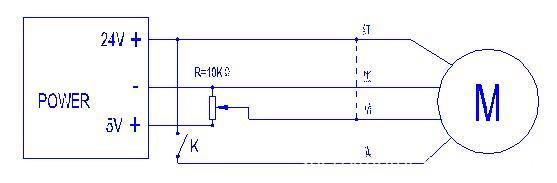

Wiring Diagram

Wiring

The output current of switching power supply can not be less than the peak current of motor’s running time. The speed can be adjusted by AVI terminal. If there’s no need for speed governing, it can be a short circuit with VDC and the motor can run at the rated speed. The motor rotation direction can be controlled by the DIR terminal. When switch off, the motor rotates anticlockwise; when switch on, the motor rotates clockwise.
