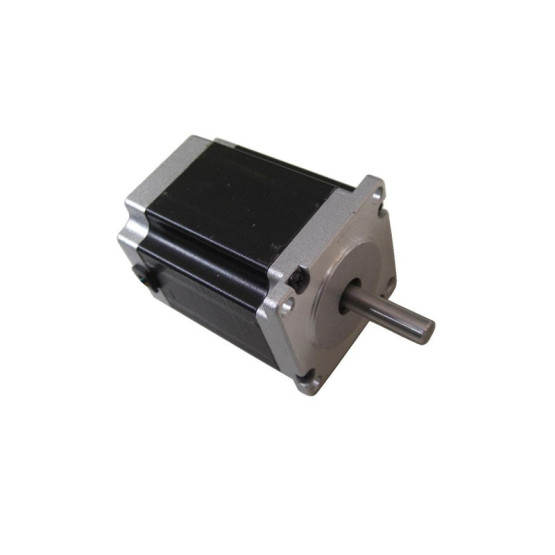

Model No.: Hi stack stator laminations hybrid stepper motor NEMA 23/3-phase

Product Description

Payment & Shipping Terms:

Features:

1. Being especially designed at 3-phase with a step angle of 1.2 degrees rather than a typical one of 1.8 degrees to offer more choices for the customers in motion control industry.
2. A wide range of rotational speeds can be achieved as the speed is proportional to the frequency of the input pulses.
3. The maximum holding torque can reach as high as 1.2N.m
4. An appropriate gearbox can be directly coupled to the shaft to obtain a higher toque.
5. The winding configurations, the extended shaft, the pilot and the mounting hole pattern can be customized to meet specific customer requirements.

Applications:

Hybrid stepper motors are used every day in both industrial and commercial applications such as aerospace, robotics, machine tools and printers/plotters.

Specifications:

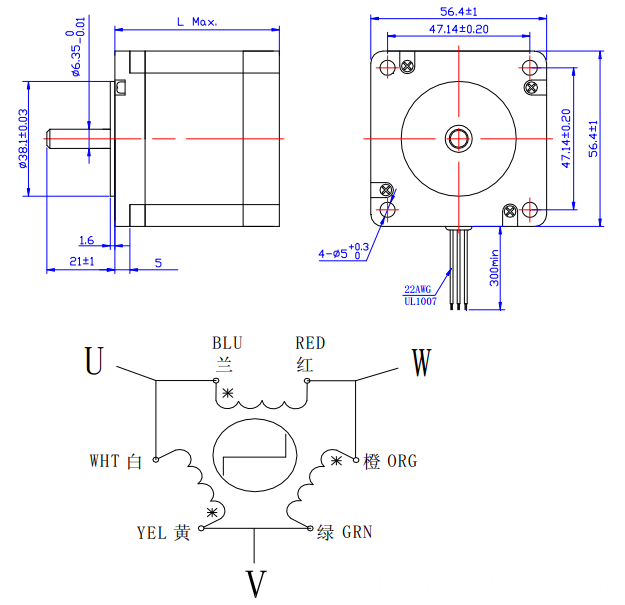

Dimensions:

(Unit=mm)

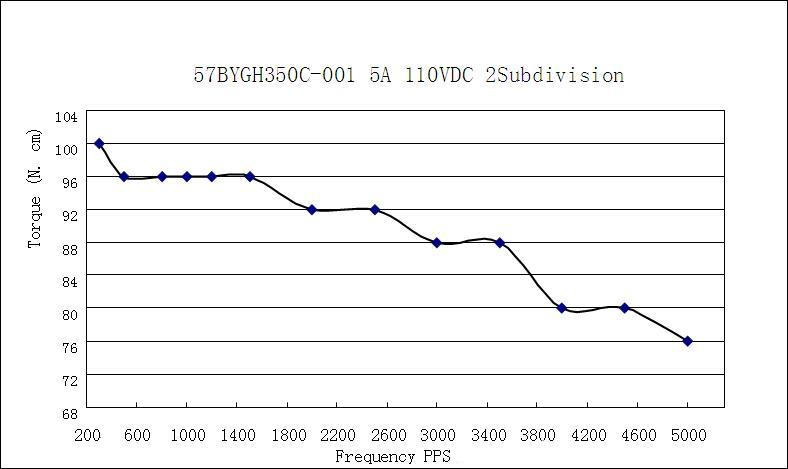

Torque-frequency Characteristics：
