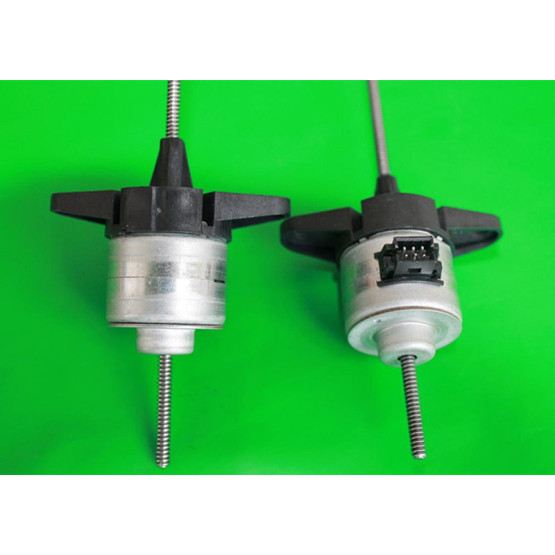

28mm PM Stepper Motor with Non-captive Shaft
Basic Info
Model No.: 28BYZ-01 linear pm stepper motor/ diameter 28mm range of non-captive shaft motor
Product Description
Produce Code: 28mm PM Stepper Motor with Non-captive Shaft
28BYZ-01 linear pm stepper motor/ diameter 28mm range of non-captive shaft motor
Features:
Our PM stepper motors come in a version of 28mm diameter and have advantages of simple & low-cost construction, open loop operation and long operational life with the absence of brushes.
The 28mm range of non-captive linear PM stepper motors are available at the step angle of 15 degrees and convert digital information/instructions in the form of pulses into proportional linear movements.
Being with either 6-lead or 4-lead configuration, our 28mm non-captive linear PM stepper motors can be customized to fit your applications to make sure the winding will match your maximum operating speed, voltage and current perfectly. Special screw modifications, cables and connector are also available upon request.
Applications:
They are the perfect choice for cost-effective linear motion control to fit the applications like coffee grinding machines, telecommunication equipment and curtain machines.
Specification:
Model |
Step Angle (°) |
No. of Phase |
Voltage (VDC) |
Current (A) |
Resistance (Ω) |
Inductance (mH) |
Step Avail (mm) |
Pull Torque (N.m) |
Journey (mm) |
28BYZ-09 |
15 |
2 |
5 |
0.46 |
10.8 |
/ |
0.0417 |
40 |
≥40 |
28BYZ-A01 |
15 |
2 |
24 |
0.16 |
150 |
85 |
0.0417 |
65 |
≥12 |
