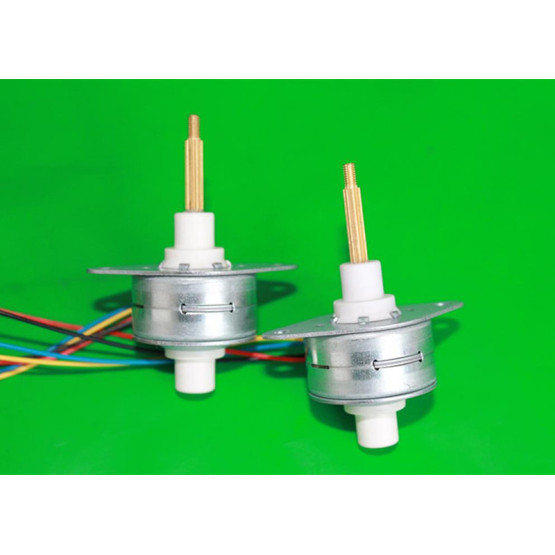

25mm PM Stepper Motor with Captive Shaft
Basic Info
Model No.: 25BYZ-C linear pm stepper motor/ 25mm motor 2 phase with captive shaft
Product Description
Product Code: 25mm PM Stepper Motor with Captive Shaft
25BYZ-C linear pm stepper motor/ 25mm motor 2 phase with captive shaft
Features:
We are very happy to have seen that based upon the basic motor structure of our 25mm series PM stepper motors, an integrated leadscrew and nut in a compact package is introduced to convert rotary to linear motion.
With a configuration of 7.5 degrees in step angle and 2-phase windings, the 25mm captive linear PM stepper motors offer a short stroke of 13.8mm in a compact package where anti-rotation of the shaft is not possible by any other means while still a precise linear movement can be well assured.
In compliance with your target applications, we will supply the customers with options in package of the integrated leadscrew and nut. Custom mounting plate is also available if it has to be.
Applications:
Typical applications include X-Y tables, semiconductor handling, telecommunications equipment, valve control and more.
Specification:
Model |
Step Angle (°) |
No. of Phase |
Voltage (VDC) |
Current (A) |
Resistance (Ω) |
Inductance (mH) |
Step Avail (mm) |
Pull Torque (N.m) |
Journey (mm) |
25BYZ-A04 |
15 |
4 |
5 |
0.23 |
22 |
4.3 |
0.0417 |
7 |
≥12 |
25BYZ-B01 |
15 |
2 |
12 |
0.23 |
53 |
23.5 |
0.0417 |
20 |
≥12 |
