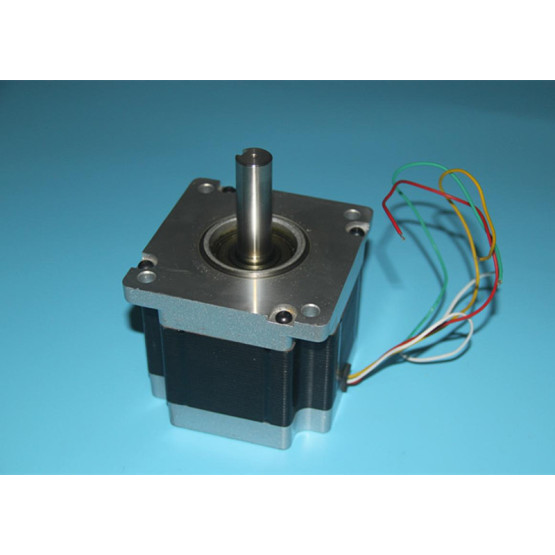

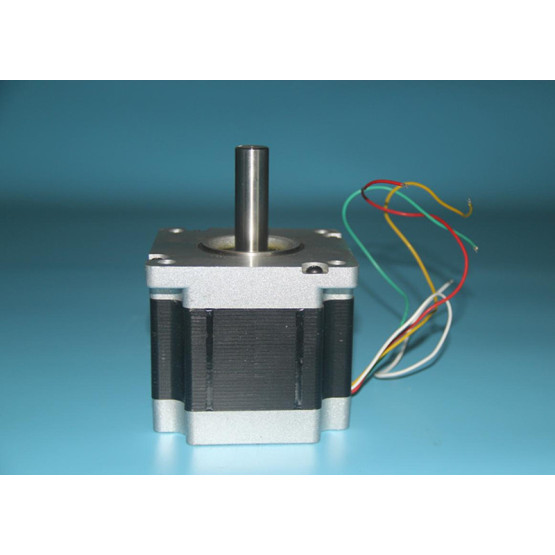

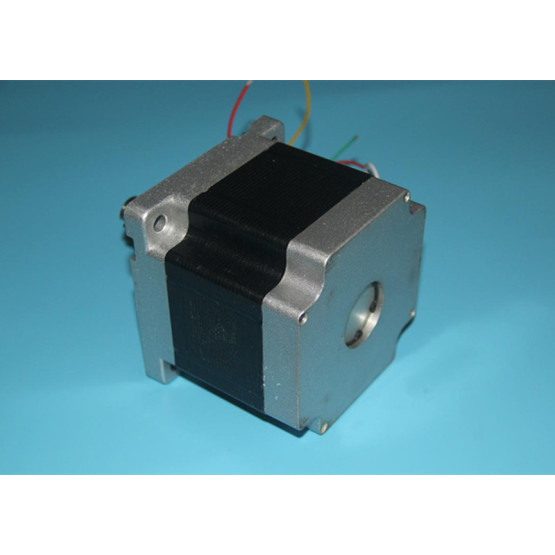

110BYGH350 Hybrid Stepper Motor
Basic Info
Model No.: 110BYGH350 Hybrid Stepper Motor
Product Description
Features:
1. Low heat and high efficiency. When the hybrid stepper motor is working, there is almost no current or no heat.
2. Smooth and accurate. The space vector control of feedback encoder current and vector smoothing filter technology overcome low frequency resonance that affects the traditional stepper motor.
3. High-speed response. Servo control technology provides a large output, ensuring high-speed dynamic response with a servo speed of 600-2000rpm.
4. Low noise.
5. The hybrid stepper motor can be customized according to customer’s requirements.
Application:
110BYGH350 hybrid stepper motor is specially designed for dispenser, woodworking machine, welding machine, screw machine, zipper machine, winding machine, placement machine, packaging machine, engraving machine, laser machine, LED and electronic equipment, etc.
General Description
Step Angle Error………………………………………±5%
Peak Temperature Rise…………………………………………80℃ Max
AmbientTemperatureRange………………………………-20℃~50℃
Insulation Resistance………………………………100MΩMin.500VC DC
Dielectric Strength……………………………………1800V AC 1S 5mA
Specifications
Model |
Step Angle ( ° ) |
Motor Length L(mm) |
Phase Voltage (V) |
Phase Current (A) |
Phase Resistance (Ω) |
Phase Inductance (mH) |
Holding Torque (N.m) |
Lead Wire (NO.) |
Detent Torque (kg.cm) |
Rotor Inertia (kg.cm²) |
Weight (kg) |
110BYGH 350A-001 |
1.2 |
120 |
6.0 |
4.3 |
1.4 |
9.2 |
10 |
3 |
3.0 |
5.5 |
5 |
110BYGH 350B-001 |
1.2 |
148 |
10.2 |
6.0 |
1.7 |
12 |
15 |
3 |
5.7 |
8.5 |
7.4 |
110BYGH 350C-001 |
1.2 |
182 |
13.4 |
6.4 |
2.1 |
14.8 |
18 |
3 |
7.5 |
11.5 |
9.8 |
110BYGH 350D-001 |
1.2 |
216 |
13.4 |
6.9 |
2.9 |
22 |
20 |
3 |
10 |
14.5 |
11.7 |
* The aboved are just representative products. Derivative products can be produced according to customer’s requirements.

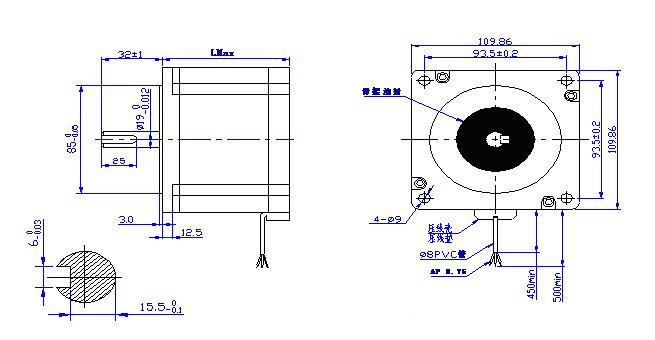

Outline Dimensions (Unit=mm)
Wiring Diagram
