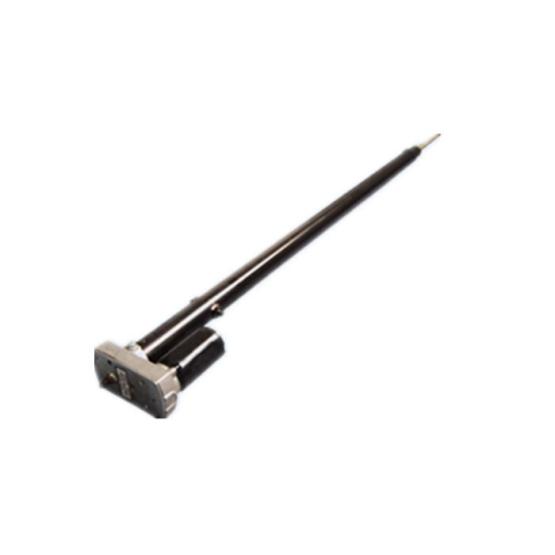

    ZGZQ01 dc linear actuator

    Contact Now

    Basic Info


    Model No.: ZGZQ01 dc linear actuator


    Product Description

    Product Code：


    DC power source / metal shells / protection level IP3X / Max. loading capacity 5500N / maximally 1100mm in full stroke / maximally 45mm/s speed

    Product Details:


    Brand Name:

    Sherry Motors

    Model Number:

    ZGZQ01

    Certification:

    UL certified /ISO9000

    Place of Origin:

    China

    Payment & Shipping Terms:


    Minimum Order Quantity:

    100pcs

    Price:

    negotiation

    Payment Terms:

    negotiation

    Supply Ability:

    10000pcs/month

    Delivery Time:

    45 working days after received your payment

    Packaging Details:

    Carton or negotiation


    Detailed Product Description：


    1、 Input voltage:12 or 24VDC.
    2、 Max. loading capacity 5500N
    3、 Maximally 1100mm in full stroke
    4、 Maximally 45mm/s speed
    5、 .Gear ratio:18:1 or 28:1
    6、 Duty cycle:20%


    Applications:


    They are perfect for the applications such as solar panel tracking, door and vent controllers and household floor washers.

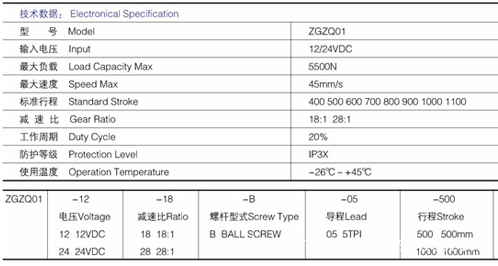

    Specifications:


    Specifications

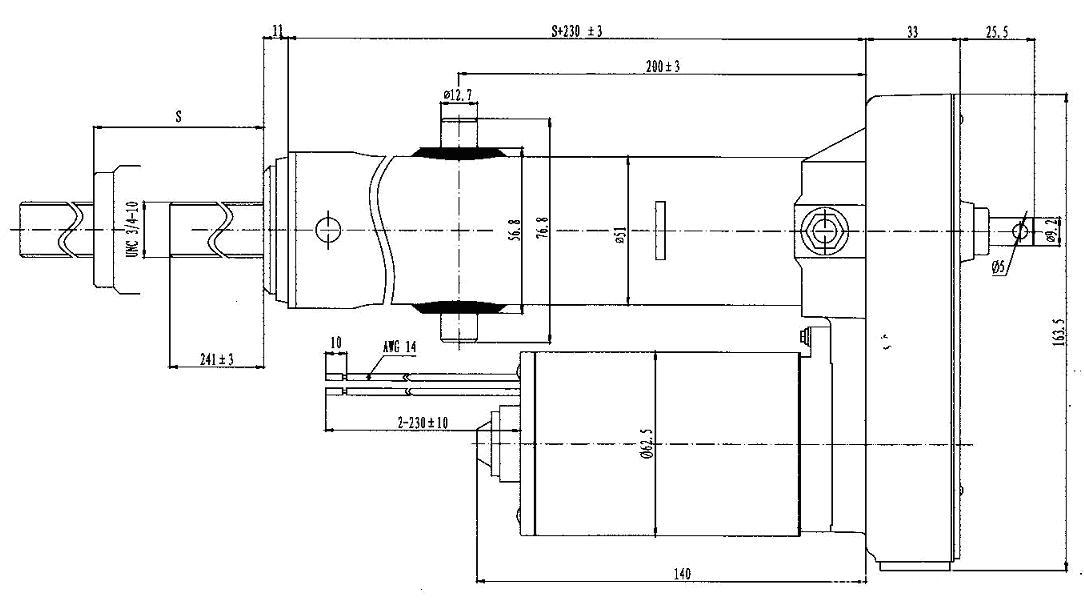

    Dimensions:

    dimension

    Dc Linear Actuator Protection Level IP3X 12v 24v Motor Metal Shells
