NEMA Size 23 Brushless Motor/ 57mm Brushless Servo Motor 24VDC Standard Motor

Basic Info

Model No.: NEMA Size 23 Brushless Motor/ 57mm Brushless Servo Motor 24VDC Standard Motor

Product Description

产品通用信息

Brand Name:	Sherry Motors
Model Number:	57BLS
Certification:
Place of Origin:	China

产品商务条款

Minimum Order Quantity:
Price:
Payment Terms:	T/T or negotiation
Supply Ability:
Delivery Time:
Packaging Details:	Carton or negotiation

General Description:

Winding Connection Type ——————————Star Connection
Hall Effect Angle ——————————120º Electrical Angle

Insulation Class ——————————B-class Insulation
Ambient Temperature——————————-20℃~+50℃
Insulation Resistance ——————————Min 100MΩ . 500V DC
Dielectric Strength ——————————500V AC 1 Minute

Specifications

Model	57BLF01	57BLF02	57BLF03	57BLF04
Number of Poles	8
Number of Phase	3
Rated Voltage VDC	24	24	24	36
Rated Speed RPM	3000	3000	3000	3000
Rated Torque N-m	0.2	0.4	0.6	0.8
Rated Current Amps	4	7.8	12	15
Output Power Watts	63	125	188	250
Peak Torque N-m	0.6	1.2	1.8	2.4
Peak Current Amps	12	23.5	36	45
Torque Constant N-m/Amps	0.065	0.066	0.066	0.066
Counter EMF Constant V/kRPM	6.23	6.3	6.3	6.3
Rotor Inertia g·cm2	120	170	220	270
Motor Length mm	48	69	90	111
Weight kg	0.65	1.0	1.4	2.0

Caution 1: Peak torque parameter is only for reference. Long-term use close to or under this condition will lead to motor damage.

Note: The aboved are just representative products. Derived products can be produced according to customer’s requirements.

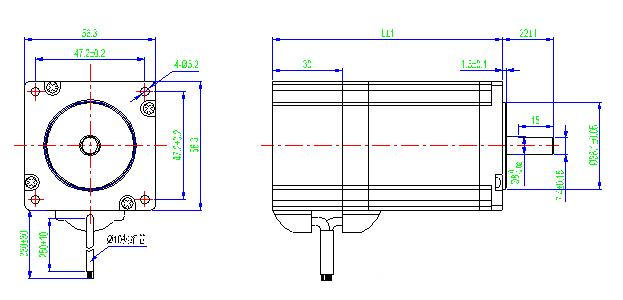

Outline Dimensions:

(Unit=mm)

Dimension

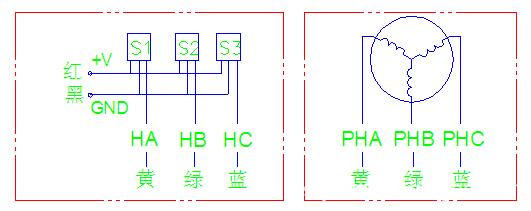

Wiring Diagram

Attention: Hall Operation Voltage: +5VDC~+20VDC

Encoder Wiring is as follows:

Signal	GND	Z	A	+5V	B
Wire Color	1	2	3	4	5
