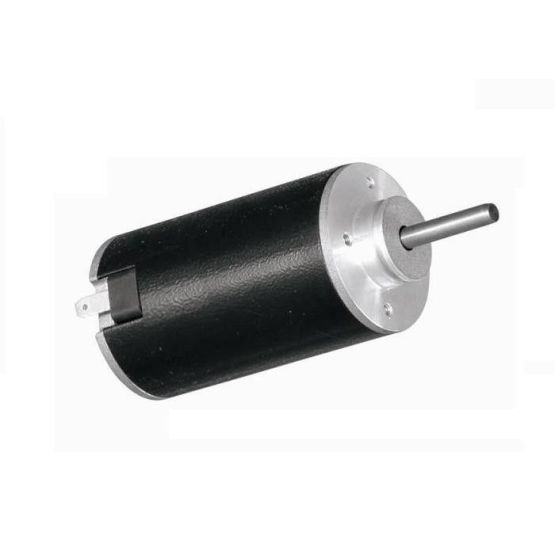

    Micro Permanent Magnet DC Motor Brushed 12 Volt DC Motor Customized

    Contact Now

    Basic Info


    Model No.: Micro Permanent Magnet DC Motor Brushed 12 Volt DC Motor Customized


    Product Description

    Certification:

    ISO9001

    Model Number:

    SH-40DCB

    Payment & Shipping Terms:

    Minimum Order Quantity:

    100pcs

    Price:

    USD 14.00-19.00 per unit

    Packaging Details:

    Carton or negotiation

    Delivery Time:

    35 working days after received your payment





    Features:

    1. Dynamically balanced armatures and sealed ball bearings to extend the life-cycle.
    2. Well machine-turned commutator to eliminate the motor noise.
    3. Aluminum die cast endcaps to decrease the motor weight, for an application of portable devices.
    4. Extended shaft and mounting configurations can be customized to fit your end-applications.

     Applications:

    Our 40mm DC brushed motors are widely applied to fans, door openers and pumps.



    Specifications:

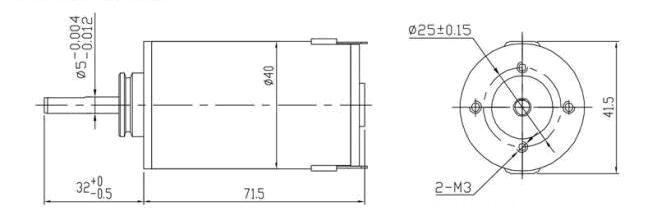

    Dimension


    Model

    Voltage

    (V)

    No load Current

    (A)

    No load

    Speed

    (rpm)

    Torque

    (Nm)

    Rated Current

    (A)

    Rated Speed

    (rpm)

    Rated Power

    (W)

    Length

    (mm)

    SH-40ZYT17

    24

    0.3

    4200

    0.045

    1.5

    3400

    16

    71.5

    SH-40ZYT27

    24

    0.1

    1800

    0.045

    0.6

    1200

    6

    71.5

    SH-40ZYT28

    24

    0.1

    2800

    0.045

    0.9

    2266

    11

    71.5

    SH-40ZYT29

    24

    0.5

    6500

    0.03

    1.7

    5500

    17

    71.5



    Micro Permanent Magnet DC Motor Brushed 12 Volt DC Motor Customized Small Quantity Available Motor
