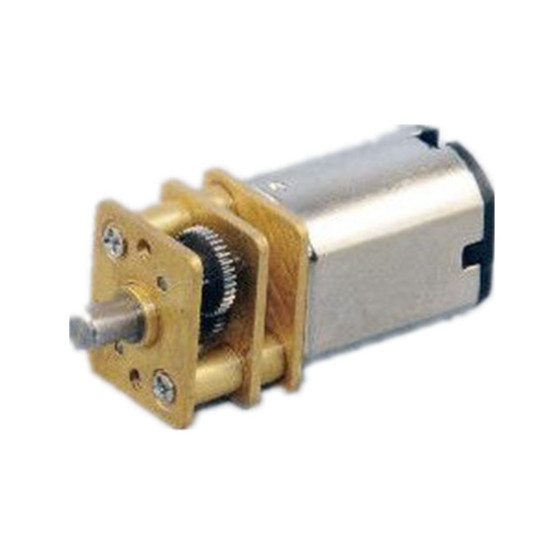

FF-N20PA brushed dc gear motor/ 12mm geared DC motors with planetary gear plastic endcap

Basic Info

Model No.: FF-N20PA brushed dc gear motor/ 12mm geared DC motors with planetary gear plastic endcap

Product Description

Certification:	TS16949/RoHS
Model Number:	FF-N20PA

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:
Packaging Details:	Carton or negotiation
Delivery Time:	45 working days after received your payment
Payment Terms:	negotiation, T/T
Supply Ability:	100,000pcs/month

Features:

Operates at the nominal voltage either 3VDC or 5VDC.
Punched housing at the diameter of 12mm.
The planetary gearhead is in a simple design to save the production cost.
A variety of gear ratios is available.

Applications:

They are widely applied to the fine positioning applications such as precision Instruments, toys and models, EC games machine and so on.

Specifications:

Model	Voltage (VDC)		No Load		At Max. Efficiency				Stall
Model	Operating Range	Nominal	Speed (r/min)	Current (A)	Speed (r/min)	Current (A)	Torque (g.cm)	Output Power (W)	Torque (g,cm)	Current (A)
FF-N20PA-08220	2.0~4.0	3.0	8058	0.025	6186	0.083	2.0	0.12	8.4	0.273
FF-N20PA-06370	4.0~6.0	5.0	7618	0.013	5828	0.042	1.8	0.10	7.5	0.138

Rated Voltage (VDC)	Reduction Rate	1/7	1/10	1/15	1/20	1/30	1/75	1/150	1/210	1/298	1/340
3V	Rated Torque (kg.cm)	7.65	10.9	16.4	21.9	29.5	73.8	133	186	264	271
3V	Rated Speed (rpm)	884	619	412	309	206	82.5	41.2	29.5	20.8	18.2
5V	Rated Torque (kg.cm)	10.2	14.6	21.9	29.2	39.4	98.4	177	248	352	361
5V	Rated Speed (rpm)	833	583	389	291	194	77.7	38.9	27.8	19.6	17.1

Reduction Ratio	L(mm)	Reduction Ratio	L(mm)
7/10/15	10*12	210/221/268	10*12
20/23/30		298/340	10*12
52/56/64/75
150/185/203

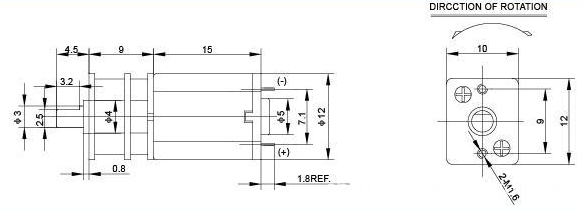

Outline Drawing:

(Unit=mm)

Planetary Gear Plastic Endcap 12mm Geared Dc Motor For Fine Positioning Applications
