C-frame shaded pole motors side length 48mm hi-precision punched stator from China

Location: Home >Shaded Pole AC Motor > C-frame shaded pole motors side length 48mm hi-precision punched stator

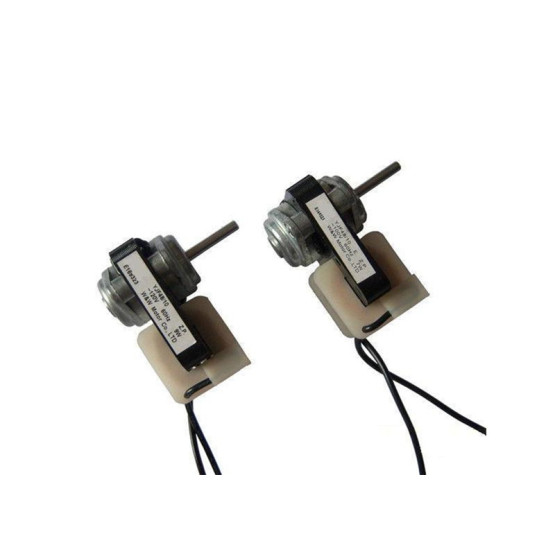

C-frame shaded pole motors side length 48mm hi-precision punched stator

Contact Now

Basic Info

Model No.: C-frame shaded pole motors side length 48mm hi-precision punched stator

Product Description

Product Code：

4810 shaded pole motor / both water-proof and dust-proof / epoxy/ use for Defrosting and heat dissipation

Product Details:

Brand Name:	Sherry Motors
Model Number:	4810
Certification:	ISO9001/CE/CSA/UL/TÜV/ROHS
Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	2000pcs
Price:	negotiation
Payment Terms:	negotiation
Supply Ability:	300000pcs/month
Delivery Time:	35 working days after received your payment
Packaging Details:	Carton or negotiation

Features:

1、 4810 series of shaded pole motors are constructed with the design of both water-proof and dust-proof by having an epoxy/nylon encapsulated winding as well as the enclosed bracket.

2、 They have endured a 48-hour immersed water testing and can still work properly in a humid place as well as in a temperature of 30 cent degrees below.

3、 Used for an internal defrosting and ventilation inside the fridge.

4、 Less power consumption but with a stabilized speed.

Applications:

They can be widely applied to the fan blades of 90-125mm in refrigerators.

Specifications:

Model	Dimensions (mm)			Voltage (V)	Frequency (Hz)	No Load			On Load				Output Power (W)
Model	A	B	C	Voltage (V)	Frequency (Hz)	Current(A)	Power (W)	Speed (rpm)	Current (A)	Power (W)	Speed (rpm)	Torque (N.m)	Output Power (W)
YJF48/08-2	8	33		220/120	50/60	0.08	6	2800	0.09	7.2	2100	2.3	0.35
YJF48/10-2	10	35	10			0.09	6.5	2800	0.10	7.5	2100	2.45	0.4
YJF48/12-2	12	37				0.09	9	2820	0.11	10.5	2150	2.94	0.7
YJF48/16-2	16	41	100			0.12	13.5	2830	0.14	15.5	2200	3.92	1
YJF48/20-2	20	45				0.14	15	2830	0.15	19	2250	5.39	1.4

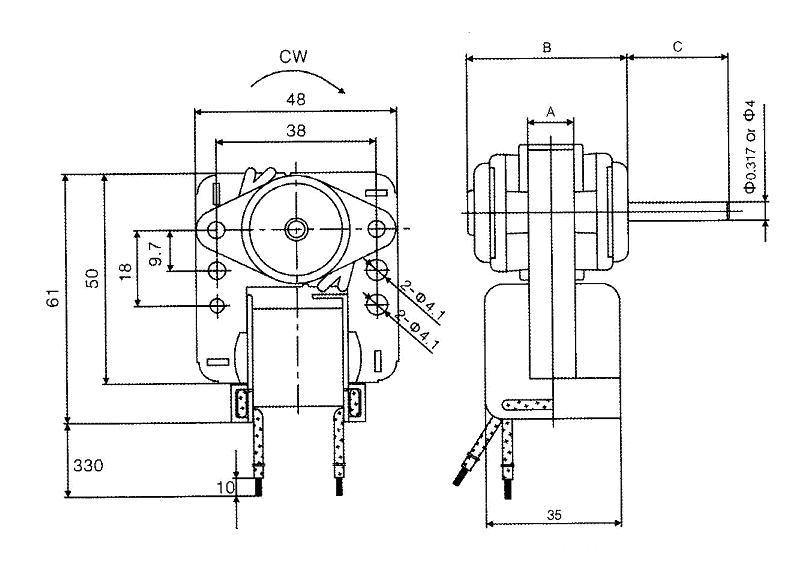

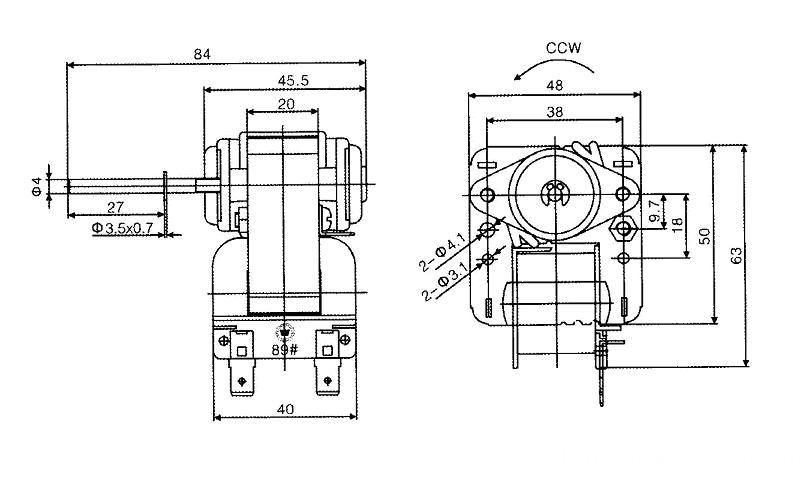

Outline Dimensions (Unit=mm)

C-frame shaded pole motors side length 48mm hi-precision punched stator / dimension

Hi precision Punched Stator C frame Shaded Pole Motors Side Length 48mm
