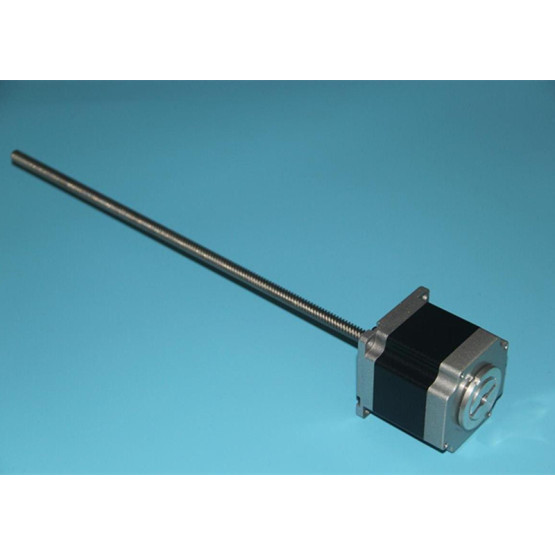

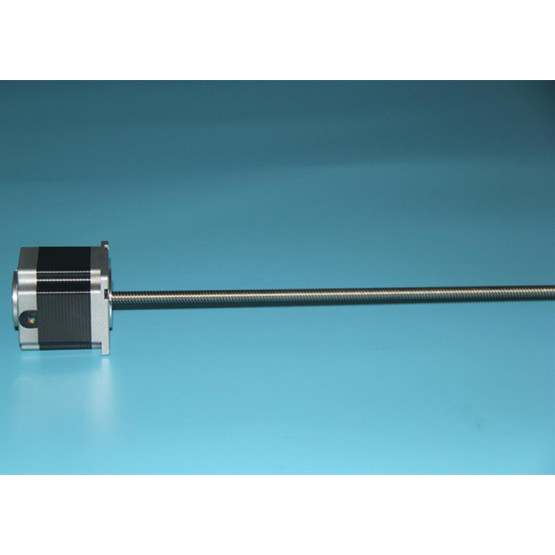

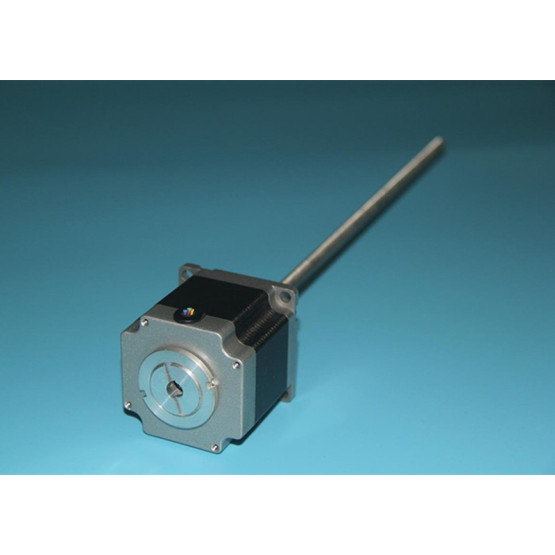

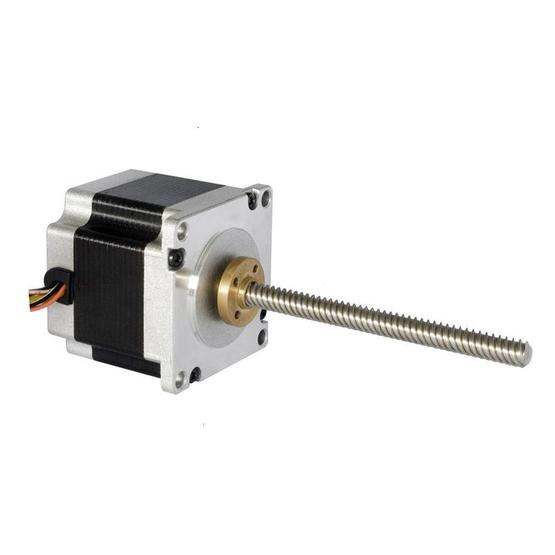

Model No.: BYGHL 57mm Hybrid Stepper Motor

Product Description

General Description：

Step Angle Error………………………………………±5%

Peak Temperature Rise………………………………………80℃ Max

AmbientTemperatureRange…………………………………-20℃~+50℃

Insulation Resistance…………………………………100MΩMin.500VC DC

Dielectric Strength………………………………………500V AC for 1 minute

Features:

1.     The federate of 57BYGHL linear hybrid stepper motor ranges from 1m/s to 20m.min or even faster.

2.     Speed derivation of 57BYGHL linear hybrid stepper motor is up to 0.01% or less.

3.     57BYGHL linear hybrid stepper motor features large acceleration. The maximum acceleration of linear motor is up to 30g.

4.     Raster closed-loop control ensures high positioning accuracy up to 0.1-0.01 mm. Linear motor drive system that used feed forward control reduces the tracking error of 200 times or more. The excellent dynamic property of moving parts, sensitive response and fine interpolation control realize Nanoscale control.

5.     57BYGHL hybrid stepper motor is driven by linear motor. The stator can be infinitely lengthened to achieve unlimited stroke of the motor. It can be manufactured easily.

6.     57BYGHL linear hybrid stepper motor is characterized by simple structure, smooth motor, low noise, low friction of moving parts, less wear, long service life, safety and reliability.

Technical Specifications:

*The aboved are just representative products. Derivative products can be produced according to customer’s requirements.

Outline Dimensions：

(Unit=mm)

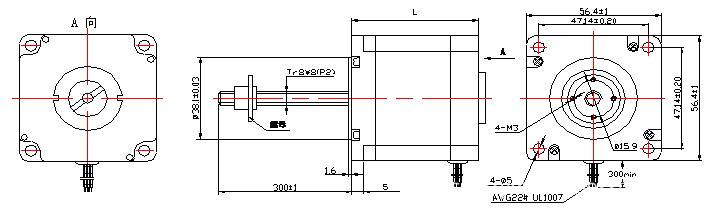

Non-captive Type

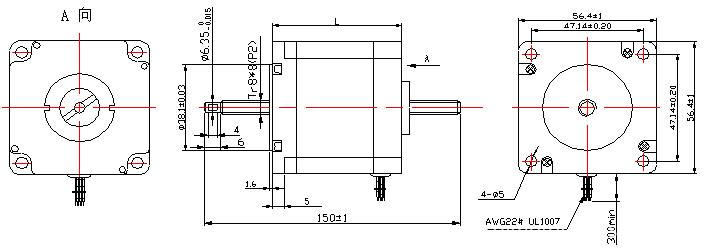

External Driver Type

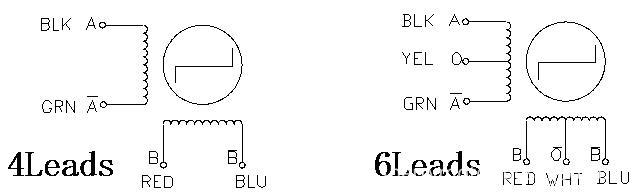

Wiring Diagram:
