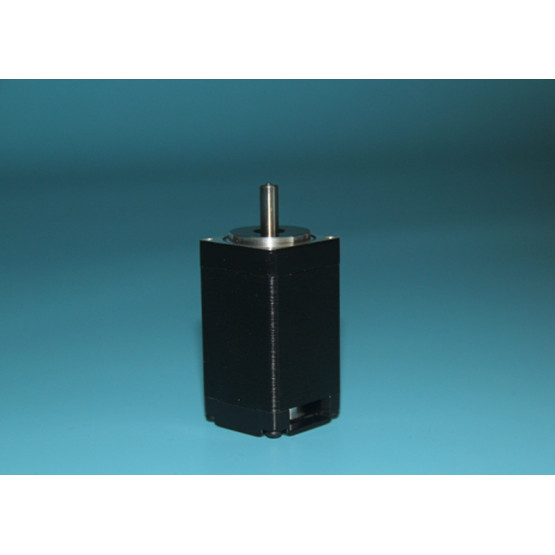

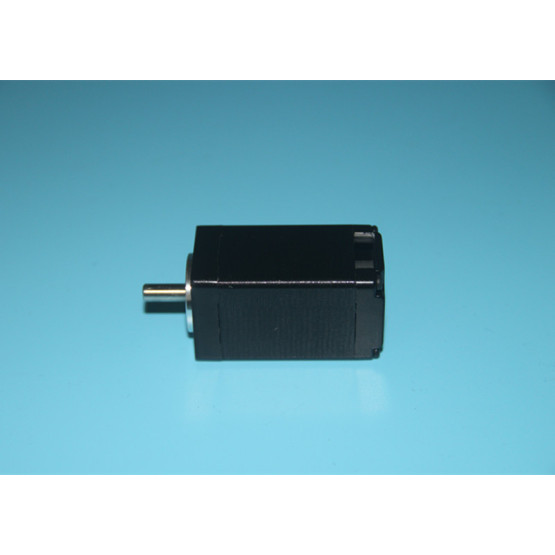

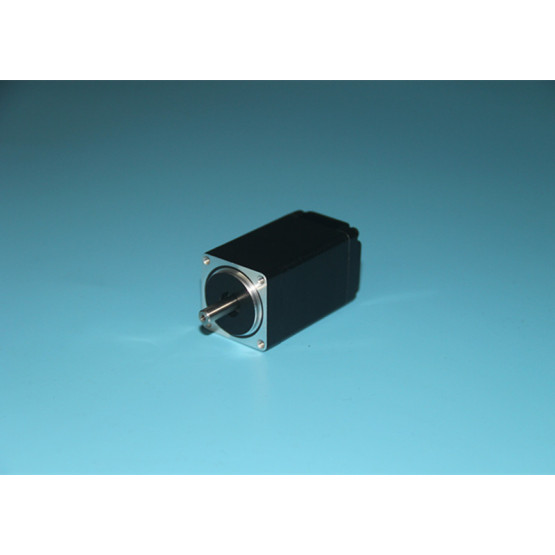

    BYG 35mm Hybrid Stepper Motor

    Contact Now

    Basic Info


    Model No.: BYG 35mm Hybrid Stepper Motor


    Product Description

    35BYG hybrid stepper motor/ high torque stepper motor for medical equipment


    Features:

    1. The frame size is determined at 35mm.
    2. The step angle is 1.8 degrees with a step angle accuracy of +/-5%.
    3. The motor body length is flexible from 20mm to 34mm.
    4. The holding torque ranges from 380g.cm to 1250g.cm to better fit different of end applications.
    5. The wirings, the extended shaft and the pilot in the front endbell can be OEM.

    Applications:
    Our 35mm hybrid stepping motors are suitable for the fine positioning applications, such as printers, plotters and medical equipment.



    General Description:
    Step Angle Error……………………………………………±5%
    Peak Temperature Rise………………………………………………80°C　Max
    Ambient Temperature Range…………………………………………-20°C~+50°C
    Insulation Resistance………………………………………………100MΩMin.500VC DC
    Dielectric Strength………………………………………………500V AC for 1 minute


    Technical Specifications：


    Model

    Step Angle

     (°)

    Motor Length

    L(mm)

    Phase Voltage

     (V)

    Phase Current

     (A)

    Phase Resistance

     (Ω)

    Phase Inductance

     (mH)

    Holding Torque

    (g.cm)

    Lead Wire

    (NO.)

    Rotor Inertia

     (g.c㎡)

    Detent Torque

    (g.cm)

    Weight

     (kg)

    35BYG101

    1.8

    20

    11.25

    0.45

    25

    9

    500

    6

    8

    50

    0.1

    35BYG103

    1.8

    20

    6.57

    0.73

    9

    4

    650

    4

    8

    50

    0.1

    35BYG104

    1.8

    20

    10.8

    0.4

    27

    17

    650

    4

    8

    50

    0.1

    35BYG203-01

    1.8

    26

    2.4

    1.5

    1.6

    1.4

    900

    4

    10

    60

    0.13

    35BYG204-02

    1.8

    26

    6.84

    0.76

    9

    4.8

    800

    6

    10

    60

    0.13

    35BYG205-01

    1.8

    26

    12

    0.25

    48

    17

    380

    6

    10

    60

    0.13

    35BYG207-01

    1.8

    26

    3.2

    0.75

    4.3

    4

    700

    4

    10

    60

    0.13

    35BYG302-01

    1.8

    28

    10.4

    0.4

    26

    10

    1000

    6

    11

    80

    0.14

    35BYG303-02

    1.8

    28

    7

    0.54

    13

    9.5

    800

    4

    11

    80

    0.14

    35BYG304-01

    1.8

    28

    3.5

    1

    3.5

    3.5

    1250

    4

    11

    80

    0.14

    35BYG401-01

    1.8

    34

    12

    0.5

    24

    12

    1000

    6

    13

    95

    0.17

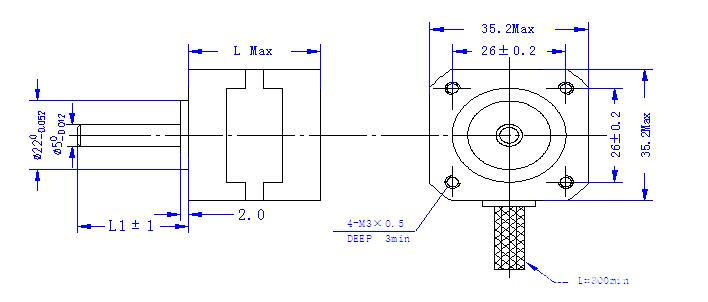

    Outline Dimensions：

    Dimension

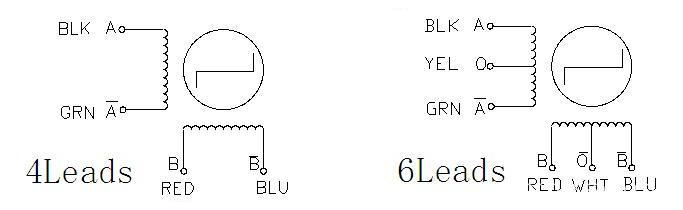

    Wiring Diagram:

    Wiring

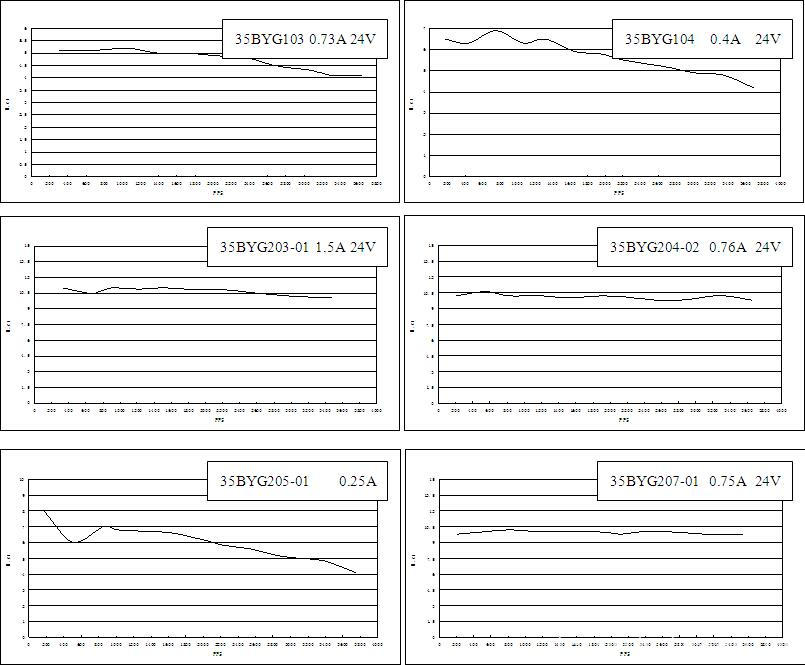

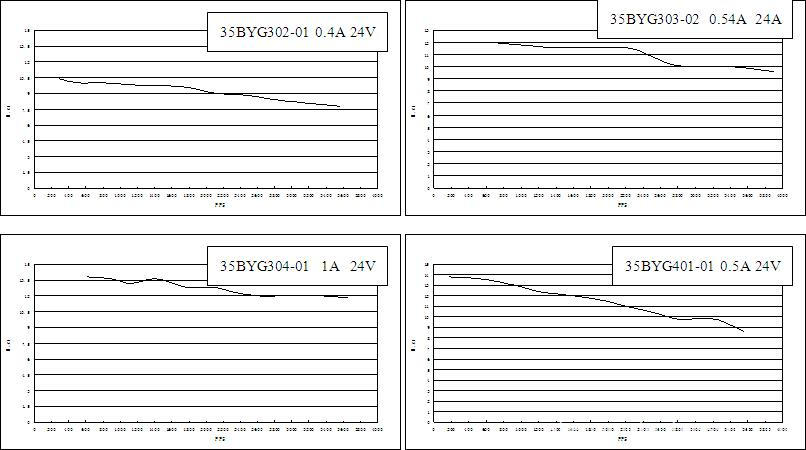

    Torque-frequency Characteristics:

    Torque-frequency Characteristics

    Torque-frequency Characteristics

    35mm Hybrid Stepper Motor Motor Body Length 20mm 34mm OME Shaft and Pilot
