    ATM wire cutting machine hybrid stepper motors with stator lamination stacks

    Contact Now

    Basic Info


    Model No.: ATM wire cutting machine hybrid stepper motors with stator lamination stacks


    Product Description



    Certification:

    TS-16949/RoHS/ISO14001

    Model Number:

    42BYGHW

    Payment & Shipping Terms:

    Minimum Order Quantity:

    3000pcs

    Price:

    USD 9.90-11.90 per unit

    Packaging Details:

    Carton or negotiation

    Delivery Time:

    40 working days after received your payment

    Payment Terms:

    negotiation, T/T

    Supply Ability:

    200,000pcs/month





    Features:

    1. In internal control for our inventory, the frame size is 42mm.
    2. In compliance with NEMA sizes, it is at Size 17.
    3. Basic line of products to assure you large-scale purchasing orders and fast-delivery.
    4. Comes up with competitive price and reliable motor performance among the overseas customers.

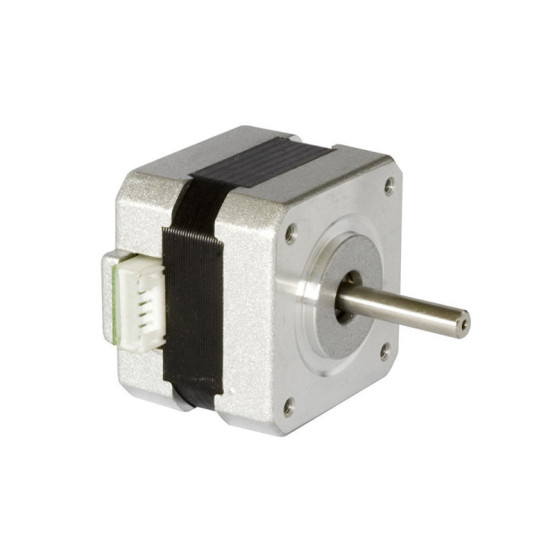

    5. Being through an exit in the side of rear endbell, the JST namebrand connector has been directly installed with the windings and this layout makes it more convenient to be assembled/ disassembled with the end applications if any.
    6. Our 42mm BYGHW series of Hybrid Stepper motors are set up at the step angle of 1.8 degrees with variable holding torques from 0.2N.m to 0.5N.m.

    Applications:
       They are widely applied to ATM, wire cutting machines, packaging machinery as well as spraying equipment.



    Specifications:



    Model

    Motor Length (mm)

    Rated Voltage (V)

    Rated Current (A)

    Phase Resistance  (Ω)

    Phase Inductance  (mH)

    Holding Torque (g.cm)

    Lead Wire

    (NO.)

    Rotor Inertia (g.cm2)

    Detent Torque

    (g.cm)

    42BYGHW205

    34

    12

    0.3

    40

    18

    1200

    6

    34

    200

    42BYGHW208

    34

    12

    0.4

    30

    37

    2600

    4

    34

    200

    42BYGHW213

    34

    12

    0.6

    20

    15

    2000

    5

    34

    200

    42BYGHW602

    40

    12

    0.4

    30

    21

    2500

    6

    54

    220

    42BYGHW603

    40

    12

    0.4

    30

    40

    3800

    4

    54

    220

    42BYGHW607

    40

    3.6

    1.2

    3

    3.2

    2600

    6

    54

    220

    42BYGHW609

    40

    3.4

    1.7

    2

    3

    3400

    4

    54

    220

    42BYGHW801

    48

    12

    0.4

    30

    25

    3200

    6

    68

    280

    42BYGHW804

    48

    3.6

    1.2

    3

    5

    4500

    4

    68

    280

    42BYGHW811

    48

    3.1

    2.5

    1.25

    1.8

    4800

    4

    68

    280




    Motor
