Basic Info

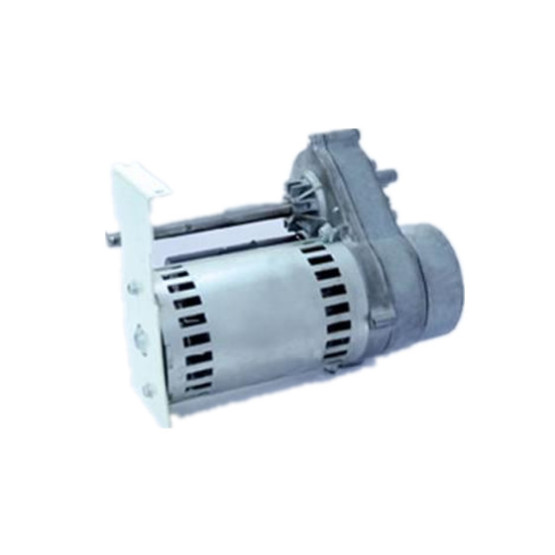

Model No.: 86YJ1901 ac linear actuator

Product Description

Product Code：

frame size 86mm / ventilation holes in the housing to cool the temperature rise / fully operates at 115VAC with a starting capacitor of 27.5uf / The gears are made from POM or Nylon / UL certified

Product Details:

Payment & Shipping Terms:

Features:

1、 AC motor single phase in frame size 86mm is used to be as the heart of this linear actuator.
2、 The motor itself is having ventilation holes in the housing to cool the temperature rise when it fully operates at 115VAC with a starting capacitor of 27.5uf.
3、 A self-enclosed gear box has been installed to do a speed reduction job at gear ratio of 19.4:1.
4、 The gears are made from POM or Nylon, which will make the complete set of linear actuator quieter in noise during a fully-loaded running.
5、 Custom gear ratio can be supplied if a larger quantity is to be ordered.
6、 The AC motor is UL certified.


Applications:

They are used for hospital bed, treadmill and dental chairs.

Specifications:

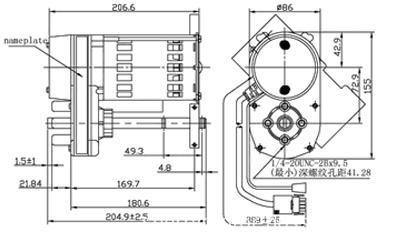

Dimensions:
