85mm enhanced hybrid 2-phase stepper motor copper windings 4 wire stepper motor
Basic Info
Model No.: 85mm enhanced hybrid 2-phase stepper motor copper windings 4 wire stepper motor
Product Description
|
Certification: |
TS-16949/RoHS/ISO14001 |
|
Model Number: |
85BYGH450 |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
100pcs |
|
Price: |
USD29.00-59.00 per unit |
|
Packaging Details: |
Carton or negotiation |
|
Delivery Time: |
45 working days after received your payment |
|
Payment Terms: |
negotiation, T/T |
|
Supply Ability: |
20,000pcs/month |
Features:
1. Being at a full step angle of 1.8 degrees, our 85mm hybrid stepper motors are having either 2-phase or 4-phase windings.
2. Bigger motor body size while delivers a wide range of holding torque varying from 2.1N.m to 9.3N.m to better fit applications in different industries.
3. Having more reliable and durable performance as there are no contact brushes inside them, these hybrid stepper motors are built with NMB namebrand ball bearings.
4. Low rotor inertia, low phase resistance but with flexible motor body lengths to fit your final applications.
5. Custom windings, extended shaft, mounting hole pattern and lead-wires are available.
Applications:
These 85mm series of Hybrid steppers are widely applied to
flame/plasma cutting machines, laser cutting machines, industrial robots as
well as CNC metal processing machinery.
Specifications:
|
Model |
Step Angle (°) |
Motor Length L(mm) |
Rate Voltage (V) |
Rated Current (A) |
Phase Resistance (Ω) |
Phase Inductance (mH) |
Holding Torque (N.m) |
Lead Wire (NO.) |
Rotor Inertia (kg.cm²) |
Motor Weight (kg) |
|
85BYGH450A-01 |
1.8 |
75 |
4.4 |
2 |
2.2 |
10 |
2.1 |
8 |
1.4 |
2.3 |
|
85BYGH450A-02 |
1.8 |
75 |
3 |
3 |
1 |
4.4 |
2.1 |
8 |
1.4 |
2.3 |
|
85BYGH450B-02 |
1.8 |
113 |
6.4 |
2 |
3.2 |
12 |
4.1 |
8 |
2.7 |
3.6 |
|
85BYGH450B-04 |
1.8 |
113 |
1.9 |
3.5 |
0.53 |
6.5 |
5.1 |
4 |
2.7 |
3.6 |
|
85BYGH450B-08 |
1.8 |
113 |
2.6 |
6 |
0.43 |
2.5 |
4.1 |
8 |
2.7 |
3.6 |
|
85BYGH450C-01 |
1.8 |
151 |
7.8 |
2 |
3.9 |
20 |
6.4 |
8 |
3.6 |
5 |
|
85BYGH450C-12 |
1.8 |
151 |
5.7 |
3 |
1.9 |
22 |
9.3 |
4 |
3.6 |
5 |
|
85BYGH450D-02 |
1.8 |
94 |
3.2 |
4 |
0.8 |
3.5 |
4.3 |
8 |
1.7 |
3 |
|
85BYGH450D-07 |
1.8 |
94 |
6.4 |
2 |
3.2 |
15 |
4.4 |
8 |
1.7 |
3 |

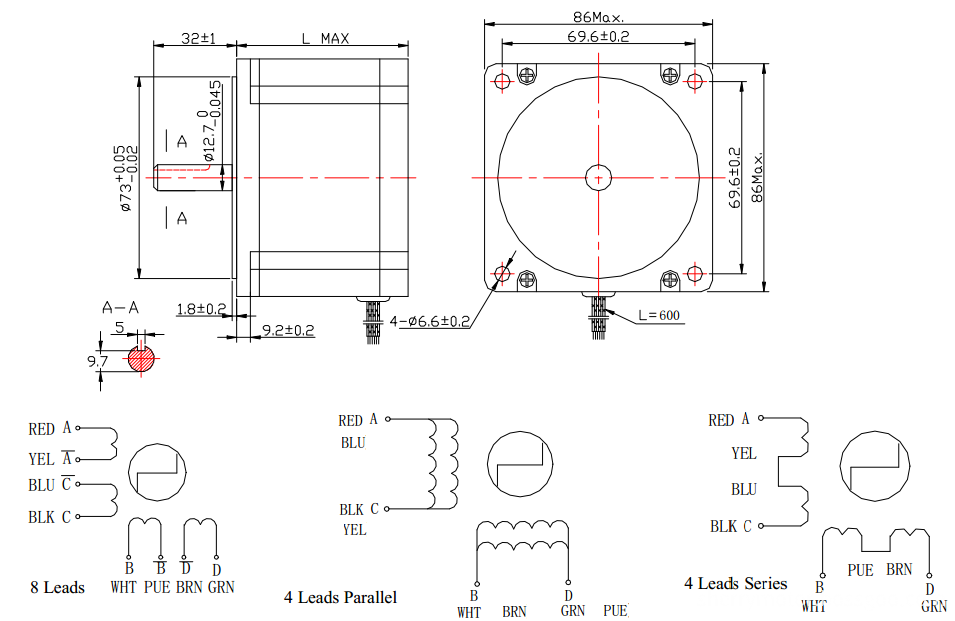

Dimensions:
(Unit=mm)
