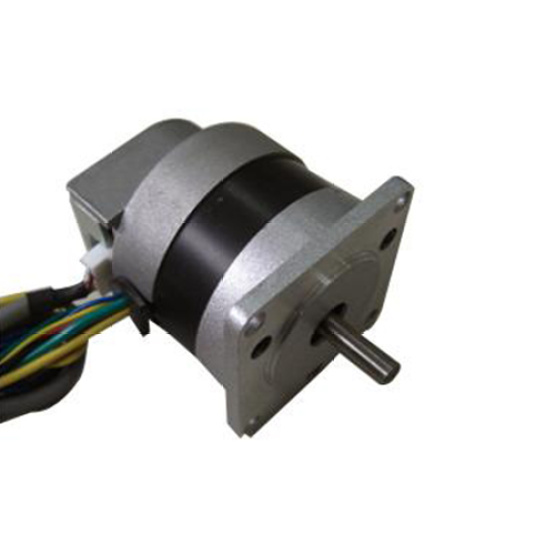

57BLYS brushless servo motor/ 3 phase and 4 poles motor with an encoder, diameter 57mm

Contact Now

Basic Info

Model No.: 57BLYS brushless servo motor/ 3 phase and 4 poles motor with an encoder, diameter 57mm

Product Description

Welcome to Sherry Motors, your one stop superstore for motion control products since 2006. Our company incorporates R&D and production of premium motors. In addition, we can provide customization service. Our main products: DC motor, AC motor, Stepper motor, Spindle motor and so on. Please continue to browse the website for a complete listing of our product lineup.

General Description:

Winding Connection Type ——————————Star Connection
Hall Effect Angle ——————————120º Electrical Angle

Insulation Class ——————————B-class Insulation
Ambient Temperature——————————-20℃~+50℃
Insulation Resistance ——————————Min 100MΩ . 500V DC
Dielectric Strength ——————————700V AC 1 Minute

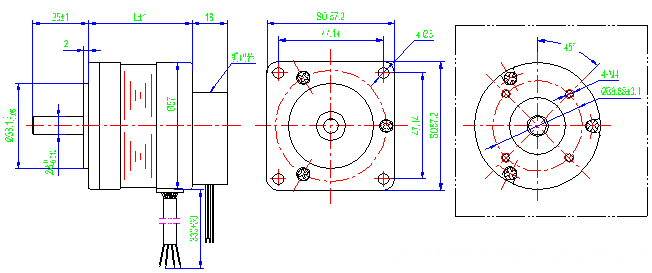

Outline Dimensions:

(Unit=mm)

Dimension

Specifications

Model	57BL01	57BL02	57BL03	57BL04	57BL05	57BL06
Number of Poles	4
Number of Phase	3
Rated Voltage VDC	24	24	24	24	24	24
Rated Speed RPM	2500	3000	3000	3000	3000	3000
Rated Torque N-m	0.057	0.11	0.165	0.22	0.33	0.44
Rated Current Amps	1.2	2.3	3.0	4.4	6.6	8.6
Output Power Watts	15	34	52	69	103	138
Peak Torque N-m	0.18	0.38	0.58	0.8	1.2	1.6
Peak Current Amps	3.6	6.8	9	13.2	19.8	25.8
Torque Constant N-m/Amps	0.074	0.059	0.06	0.062	0.062	0.063
Counter EMF Constant V/kRPM	7.75	6.2	6.3	6.5	6.5	6.6
Rotor Inertia g·cm2	32	42	58	72	106	140
Motor Length mm	41.5	46.5	56.5	66.5	86.5	106.5
Weight kg	0.43	0.5	0.67	0.75	1.0	1.25

Caution 1: Peak torque parameter is only for reference. Long-term use close to or under this condition will lead to motor damage.

Note: The aboved are just representative products. Derived products can be produced according to customer’s requirements.

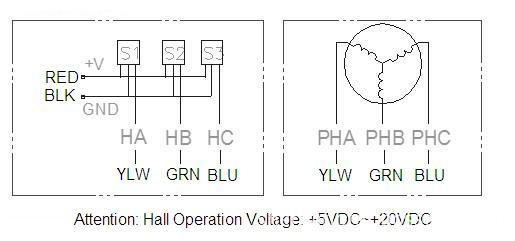

Wiring Diagram:

Wiring

Encoder Wiring is as follows:

Signal	GND	Z	A	+5V	B
Wire Color	1	2	3	4	5
