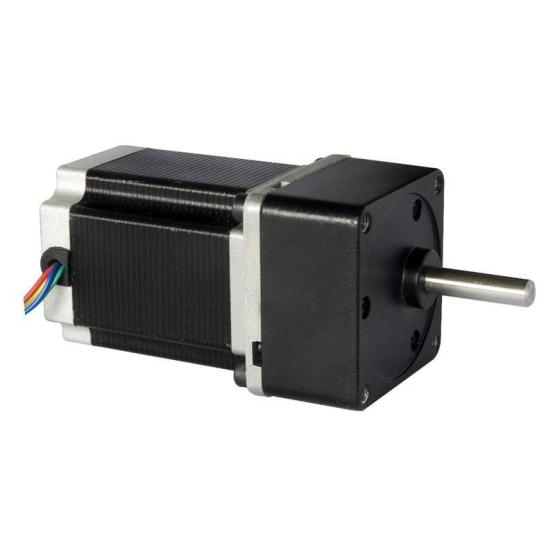

    3 phase Geared motors with square flange metal gears, spur gear motor

    Contact Now

    Basic Info


    Model No.: 3 phase Geared motors with square flange metal gears, spur gear motor


    Product Description



    Certification:

    TS16949/ROHS/ISO

    Model Number:

    57BYGH-SPUR

    Payment & Shipping Terms:

    Minimum Order Quantity:

    100pcs

    Price:

    USD 59.00-79.00 per unit

    Packaging Details:

    Carton or negotiation

    Delivery Time:

    45 working days after received your payment

    Payment Terms:

    negotiation, T/T

    Supply Ability:

    40,000pcs/month





    Features:

    1. 1.8° of step angle to provide a high resolution positioning.
    2. High-density stacks of stator laminations with paint finish to enable the complete motor to work properly with anti-rust and anti-moisture abilities.
    3. A spur gearbox is introduced to increase the holding torque for some specific applications.
    4. Options in motor body length, mounting configurations are available upon request.

    Applications:

    Our hybrid stepper motor, with spur gearbox, is an ideal solution to the applications such as pick and place machines, embroidery machines and CNC machinery.



    Specifications:



    Model

    Step Angle (°)

    Motor Length (mm)

    Rated Voltage (V)

    Rated Current (A)

    Phase Resistance

    (Ω)

    Phase Inductance

    (mH)

    Holding Torque (Kg.cm)

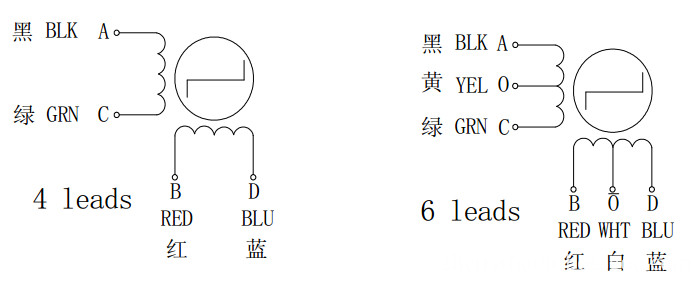

    Lead Wire

    (NO.)

    Gear Ratio

    57BYGH009-06BAG30

    1.8

    41

    15.72

    1

    5.7

    7

    3.9

    6

    30:1

    57BYGH206-05BAG10

    1.8

    51

    366.6

    1

    6.6

    8.2

    7.2

    6

    10:1

    57BYGH402-AG15

    1.8

    56

    1212

    0.6

    20

    25

    8.5

    6

    15:1

    57BYGH630-07AG20

    1.8

    76

    3.2

    2.8

    1.13

    5

    18.9

    4

    20:1

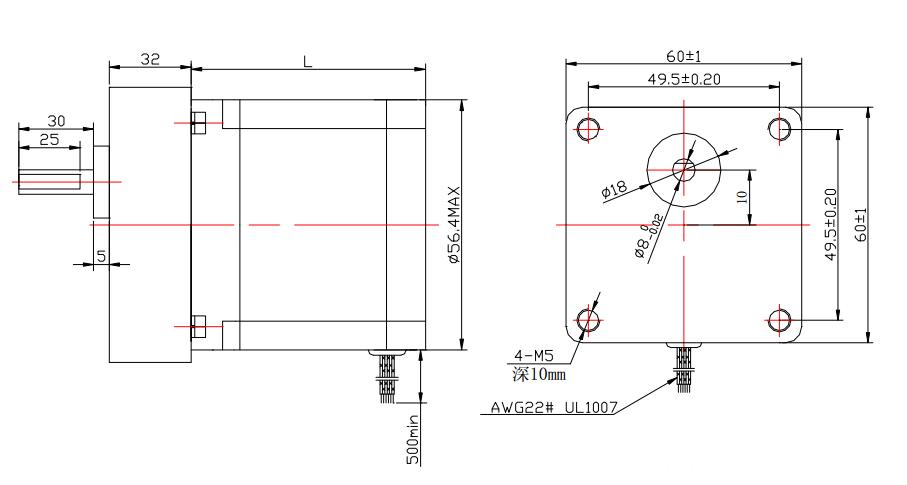

    Dimensions:

    (Unit=mm)


    3 phase Geared motors with square flange metal gears, spur gear motor


    3 phase Geared motors with square flange metal gears, spur gear motor

    Spur Gear Motor Square Flange Metal Gears 3 Phase Geared Motor
