240v Big power low noise AC motor for drain pump shaded pole from China

Location: Home >Shaded Pole AC Motor > 240v Big power low noise AC motor for drain pump shaded pole

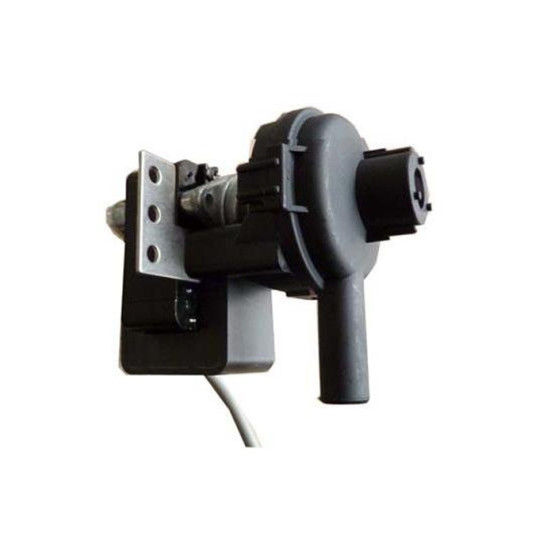

240v Big power low noise AC motor for drain pump shaded pole

Basic Info

Model No.: 240v Big power low noise AC motor for drain pump shaded pole

Product Description

Certification:	ISO9001/CE/CSA/UL/TÜV/RoHS
Model Number:	YJF

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	USD 9.90-12.90 per unit
Packaging Details:	Carton or negotiation
Delivery Time:	45 working days after received your payment
Payment Terms:	negotiation, T/T
Supply Ability:	100,000pcs/month

Features:

Uniform size with compact design.
Quality ball bearings to help our small AC motors with a smooth operation.
The stator stacks with paint finish to enable the complete shaded-pole motor to work in the condition of Insulation Class F.
Necessary components have been especially developed for a further assembly with the drain pump in central air-conditioner.

Applications:

Our small AC shaded pole motors are typically applied to the drain pump in central air-conditioner or in the washing machines.

Specifications:

Model	Voltage (VAC)	Current (A)	Power (W)	Speed (rpm)	Tube Diameter (mm)	Raising Capacity (m)	Flow (L)
EP19/ST	240V/50Hz	0.35	37	1780	18	1	15
EP19-UL	115V/60Hz	0.4	21	2670	18	1	7.5
EP28	240V/50Hz	0.35	44	1800	18	1.6	16
EP38	240V/50Hz	0.42	52	1900	18	1.85	20
EP50	240V/50Hz	0.55	67	2260	18	1.85	34

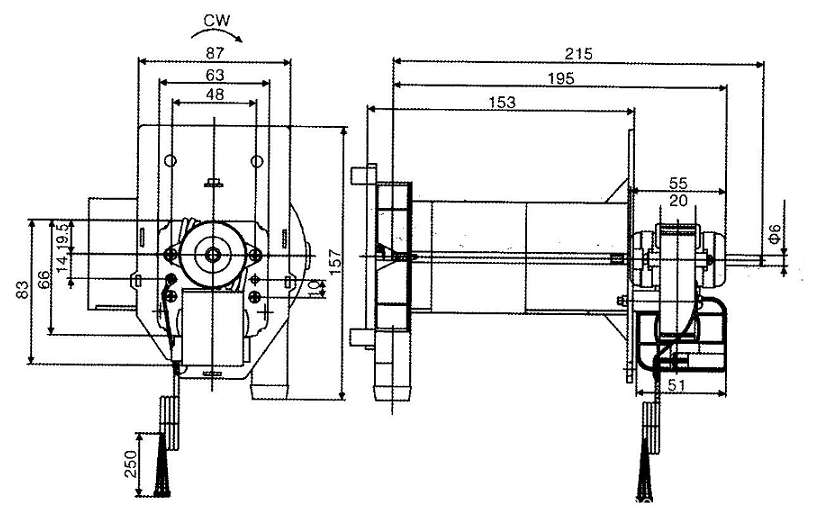

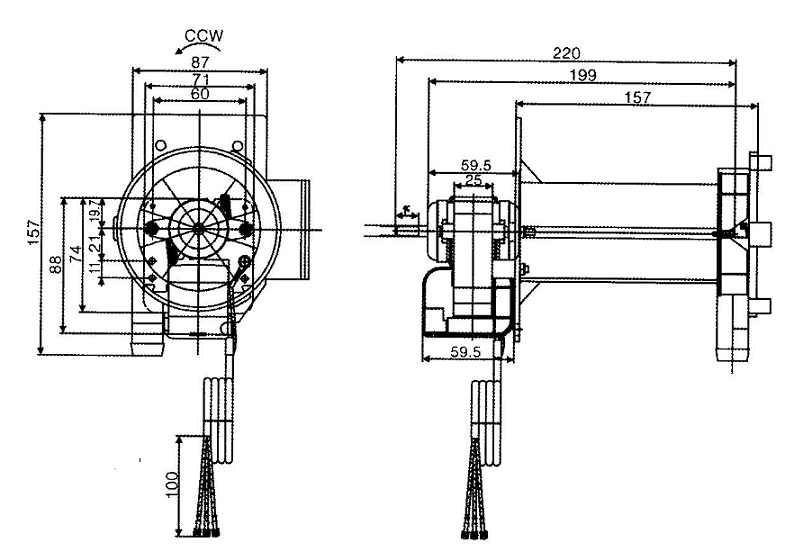

Dimensions:

(Unit=mm)

240v Big power low noise AC motor for drain pump shaded pole

240v Big power low noise AC motor for drain pump shaded pole

Low Noise AC Motor 240v Big Power For Drain Pump Shaded Pole
